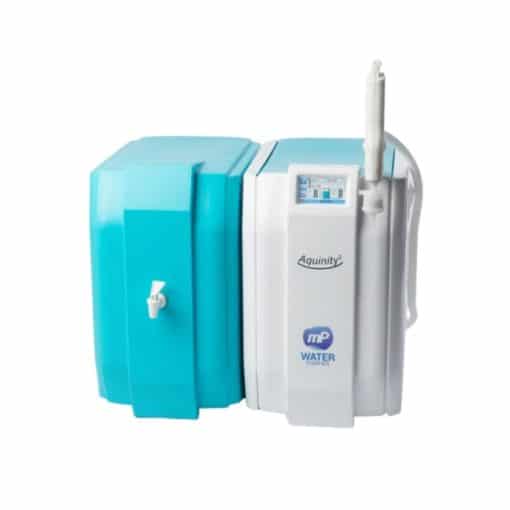

Product Description Aquinity P versions produce deionized water (<, 1 S/cm/ >, 1 MOhm x cm) by reverse osmosis and conditioning module in to the external reservoir (35 liter or 70 liter). The water can be tapped directly (e.g. for glassware cleaning by hand) or connecting the tank to a laboratory dishwasher. Out of the storage tank the ultrapure water is produced and then can be tapped with a flexible dispenser. The Aquinity water purification system is available in different configurations (Reagent, Analytical & LifeScience) to meet the specific requirements of ultra pure water for different applications. Analytical is a version with UV lamp for low TOC value. Life Science version comes with UV lamp and Ultrafiltration Module for low TOC and low endotoxin values. An optional integrated TOC sensor allows the user to monitor the TOC content permanently online. Besides that the Aquinity can be configured as bench top or bench-integrated system with external panel and wall mounted (with inclined display). The tank can be installed at the side or above the system or even underneath the bench. Upon request the tanks can be connected in series to reach a bigger volume of reservoir. Advantages of the new systems Compact housing Big touchscreen Remote service module #col-471579823 > .col-inner { margin: 0px 0px -22px 0px, } Menus and wizards easy to use and mistake avoiding New fixed and flexible dispenser Easy access for cartridge exchange #col-99237438 > .col-inner { margin: 0px 0px -17px 0px, } #col-847623923 > .col-inner { margin: 0px 0px -19px 0px, } #image_82045069 { width: 42%, } #col-1272324962 > .col-inner { margin: 0px 0px -17px 0px, } Options Bench Integrated Configuration (BI version) To save valuable benchtop space the system can be ordered as BI configuration. The system will be installed underneath the work bench and only the display and dispenser are mounted on the wall. Wall Mounted Configuration To save valuable benchtop space the system can be ordered as wall mounted configuration. the whole system can be mounted on the wall with inclined display. TOC-Monitoring (TI version) The TOC monitoring during production and intermittent measurements during non-use periods allows to check the organic content in water continuously. The TOC value is measured between 1 and 999 ppb and can be shown in the display to monitor organic impurities. Volumetric Dispensing Our dispenser allows the volumetric controlled dispensing of water with an increment of 0.1 L and a tap volume from 0.1 to 99 L. The system prevents overflow of containers and allows to dispense water without supervising. #col-1422711305 > .col-inner { margin: 0px 0px -10px 0px, } Technical Specifications Technical Specifications of produced water: Resistivity/Conductivity: >, 1 MOhm x cm | <, 1 S/cm, Type II 18.2 MOhm x cm | 0.055 S/cm, Type I production rate: max. 10 L/h, optionally 20 L/h Total Organic Carbon (TOC): <, 10 ppb (Reagent) <, 5 ppb (Life Science) <, 3 ppb (Analytical) #col-661435365 > .col-inner { margin: 0px 0px -20px 0px, } #image_671248824 { width: 56%, } Technical Specifications pure water + ultrapure water quality <, 2 S/cm, Type II + 0.055 S/cm, Type I resistivity >, 0.5 MegaOhm, Type II + 18.2 MegaOhm/cm, Type I total organic carbon (TOC) <, 10 ppb Reagent, <, 5 ppb Life Science, <, 3 ppb Analytical dispensing flow rate 2.0 L/min (1.5 L/min Life Science) production rate 10 L/min, optionally 20 L/h bacteria <, 1 cfu/mL particulate >, 0.2 m less than 1 particulate/mL pyrogen (endotoxins) <, 0.001 EU/mL* RNAse <, 1 pg/mL* DNAse <, 5 pg/mL* dimensions, weight, power 504 x 680 x 535 mm, 16-20 kg, 110 230 V *Life Science Feed Water Requirements type of feed water tap water feed water conductivity <, 1400 S/cm inlet pressure 1.5 to 6 bar free chlorine <, 0.1 mg/L Silt Density Inded (SDI) <, 3 pH 3 to 9 temperature 5 to 25 C #gap-1125632474 { padding-top: 30px, } View the Brochure
Технические характеристики
Technical Specifications
Technical Specifications of produced water:
- Resistivity/Conductivity:
>, 1 MOhm x cm | <, 1 µS/cm, Type II
18.2 MOhm x cm | 0.055 µS/cm, Type I
- production rate:
max. 10 L/h, optionally 20 L/h
- Total Organic Carbon (TOC):
<, 10 ppb (Reagent)
<, 5 ppb (Life Science)
<, 3 ppb (Analytical)
#col-1353660018 > .col-inner { margin: 0px 0px -20px 0px, } #image_118291185 { width: 56%, }
| Technical Specifications | |
|---|---|
| pure water + ultrapure water quality | <, 2 µS/cm, Type II + 0.055 µS/cm, Type I |
| resistivity | >, 0.5 MegaOhm, Type II + 18.2 MegaOhm/cm, Type I |
| total organic carbon (TOC) | <, 10 ppb Reagent, <, 5 ppb Life Science, <, 3 ppb Analytical |
| dispensing flow rate | 2.0 L/min (1.5 L/min Life Science) |
| production rate | 10 L/min, optionally 20 L/h |
| bacteria | <, 1 cfu/mL |
| particulate | >, 0.2 µm less than 1 particulate/mL |
| pyrogen (endotoxins) | <, 0.001 EU/mL* |
| RNAse | <, 1 pg/mL* |
| DNAse | <, 5 pg/mL* |
| dimensions, weight, power | 504 x 680 x 535 mm, 16-20 kg, 110 — 230 V |
| *Life Science |
| Feed Water Requirements | |
|---|---|
| type of feed water | tap water |
| feed water conductivity | <, 1400 µS/cm |
| inlet pressure | 1.5 to 6 bar |
| free chlorine | <, 0.1 mg/L |
| Silt Density Inded (SDI) | <, 3 |
| pH | 3 to 9 |
| temperature | 5 to 25 °C |
#gap-359590289 { padding-top: 30px, }
View the Brochure
Replacement Parts & Accessories
To view available parts for this instrument and instruments like it, click here.
Our parts and accessories inventory is constantly changing. Don’t see what you’re looking for? Give us a call, we’ll be happy to help.
