Механические трубчатые внутренние микрометры типа удлинительного стержня

Трубчатый внутренний микрометр Mitutoyo с механическим удлинительным стержнем позволяет измерять широкий диапазон внутренних размеров с высокой точностью.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

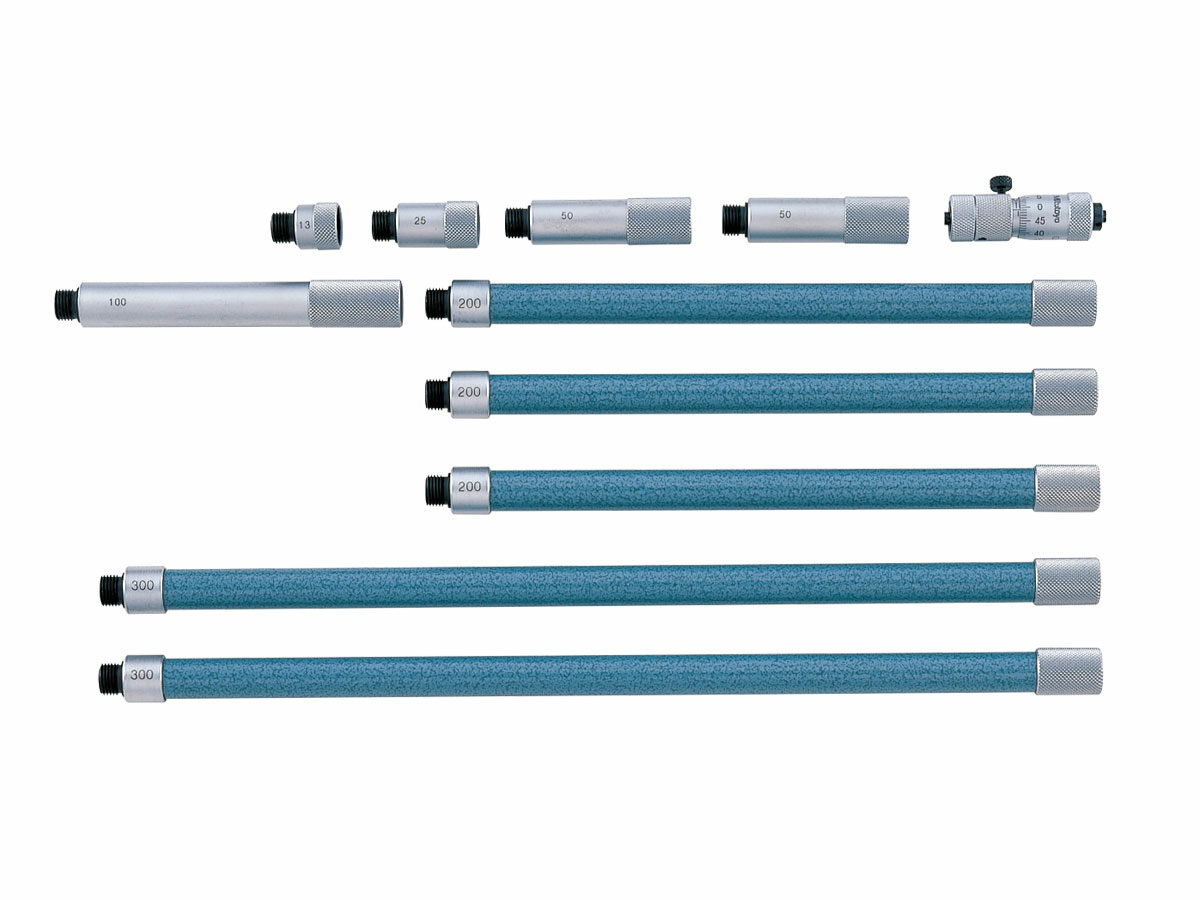

The Mitutoyo mechanical tubular inside micrometer includes a set of solid extension rods to measure a diversified range of inner dimensions of cylinders, rings and parallel surfaces with high accuracy. Slow head travel provides fine measurement position, while a locking clamp holds measurements in place for easier reading. The extension rods have knurled collars for easy, secure installation and removal.

Available in Metric and Inch sets
Optional setting rings are available
Solid extension rod allows for measuring various dimensions with reliability and durability
Some models are available with carbide-tipped faces for better accuracy and wear resistance
Vernier scale on the sleeve offers exact measurements
Satin chrome finish on the sleeve and laser etched scale on thimble for easier reading
Supplied in fitted plastic case, the 1500mm / 60″ model comes in a wooden case

Order No.:	Product Image:	Units:	Range:	Graduation:	Spindle Feed Error:	Measuring Faces:	Travel of Micrometer Head:	Extension rods:

Order No.:

137-011		Metric	50 — 63mm	0.01mm	3µm	Hardened Steel	13mm	Micrometer Head Only
137-012		Inch	2-2.5″	0.001″	0.00015″	Hardened Steel	.5″	Micrometer Head Only
137-013	—	Metric	50 — 63mm	0.01mm	3µm	Carbide tipped	13mm	Micrometer Head Only
137-014	—	Inch	2-2.5″	0.001″	0.00015″	Carbide tipped	.5″	Micrometer Head Only
137-201	—	Metric	50 — 150mm	0.01mm	3µm	Hardened Steel	13mm	13, 25, 50
137-202	—	Metric	50 — 300mm	0.01mm	3µm	Hardened Steel	13mm	100, 13, 25, 50 (2pcs)
137-203	—	Metric	50 — 500mm	0.01mm	3µm	Hardened Steel	13mm	100, 13, 25, 50 (2pcs), 200
137-204	—	Metric	50 — 1000mm	0.01mm	3µm	Hardened Steel	13mm	100, 13, 25, 50 (2pcs), 200 (2pcs), 300
137-205	—	Metric	50 — 1500mm	0.01mm	3µm	Hardened Steel	13mm	100, 13, 25, 50 (2pcs), 200 (3pcs), 300 (2pcs)
137-206	—	Metric	50 — 150mm	0.01mm	3µm	Carbide tipped	13mm	13, 25, 50
137-207	—	Metric	50 — 300mm	0.01mm	3µm	Carbide tipped	13mm	100, 13, 25, 50 (2pcs)
137-208	—	Metric	50 — 500mm	0.01mm	3µm	Carbide tipped	13mm	100, 13, 25, 50 (2pcs), 200
137-209	—	Metric	50 — 1000mm	0.01mm	3µm	Carbide tipped	13mm	100, 13, 25, 50 (2pcs), 200 (2pcs), 300
137-210	—	Metric	50 — 1500mm	0.01mm	3µm	Carbide tipped	13mm	100, 13, 25, 50 (2pcs), 200 (3pcs), 300 (2pcs)
137-211		Inch	2-6″	0.001″	0.00015″	Hardened Steel	.5″	.5, 1, 2
137-212		Inch	2-12″	0.001″	0.00015″	Hardened Steel	.5″	.5, 1, 4, 2 (2 pcs)
137-213	—	Inch	2-20″	0.001″	0.00015″	Hardened Steel	.5″	.5, 1, 4, 2 (2 pcs), 8
137-214	—	Inch	2-40″	0.001″	0.00015″	Hardened Steel	.5″	.5, 1, 4, 2 (2 pcs), 8 (2 pcs), 12
137-215		Inch	2-60″	0.001″	0.00015″	Hardened Steel	.5″	.5, 1, 4, 2 (2 pcs), 8 (3 pcs), 12 (2 pcs)
137-216	—	Inch	2-6″	0.001″	0.00015″	Carbide tipped	.5″	.5, 1, 2
137-217	—	Inch	2-12″	0.001″	0.00015″	Carbide tipped	.5″	.5, 1, 4, 2 (2 pcs)
137-218	—	Inch	2-20″	0.001″	0.00015″	Carbide tipped	.5″	.5, 1, 4, 2 (2 pcs), 8
137-219	—	Inch	2-40″	0.001″	0.00015″	Carbide tipped	.5″	.5, 1, 4, 2 (2 pcs), 8 (2 pcs), 12
137-220	—	Inch	2-60″	0.001″	0.00015″	Carbide tipped	.5″	.5, 1, 4, 2 (2 pcs), 8 (3 pcs), 12 (2 pcs)

137-011
137-012
137-013
137-014
137-201
137-202
137-203
137-204
137-205
137-206
137-207
137-208
137-209
137-210
137-211
137-212
137-213
137-214
137-215
137-216
137-217
137-218
137-219
137-220

Технические характеристики

Technology:	Mechanical
Type:	Extension rod
