Механические одностержневые трубчатые нутромеры

Механический трубчатый внутренний микрометр Mitutoyo с одним стержнем выполняет точные измерения внутренних размеров цилиндров, колец и параллельных поверхностей.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

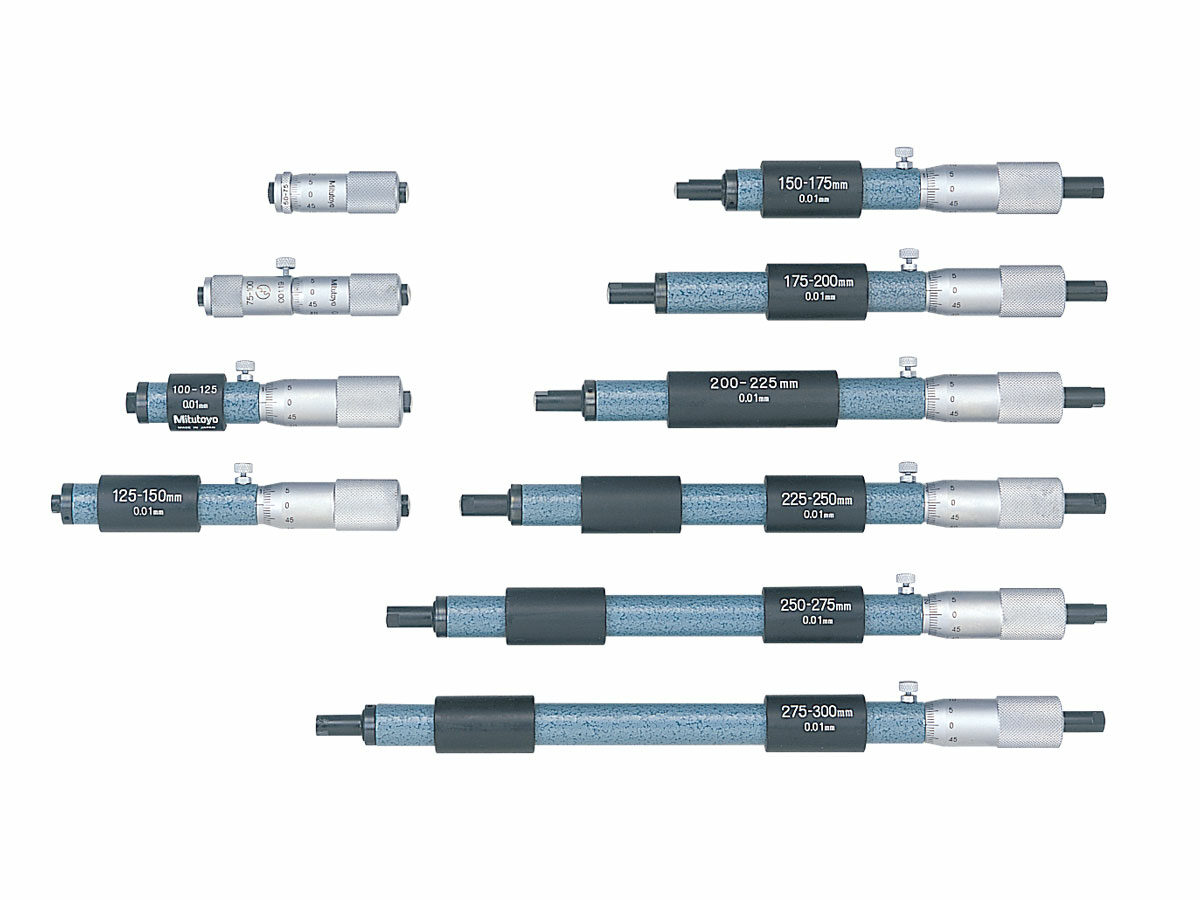

The Mitutoyo single rod tubular inside micrometer features carbide-tipped measuring surfaces, a precision-calibrated screw and hardened steel spindle to take highly accurate, high resolution inside dimension measurements. A laser-etched scale on the coated glare-resistant micrometer head, and a convenient locking clamp to hold dimensions in place, helps make reading measurements easier. The zero set on these tubular micrometers easily adjusts with the included key wrench.

Available in Metric and Inch models
Optional setting rings for zero point adjustment are available
Ideal for fast, accurate inside measurements of cylinders, rings and parallel surfaces
Adjustable zero-setting helps provide accuracy
Carbide measuring surfaces provide better accuracy and wear resistance
Scale on thimble and sleeve is laser etched for easier reading in all conditions
Tubular inside micrometers up to 200mm / 8″ diameter measurements supplied in a fitted plastic case
Tubular inside micrometers over 200mm / 8″ diameter measurements supplied in a wooden case

Order No.:	Product Image:	Units:	Range:	Graduation:	Accuracy:

Order No.:

133-143		Metric	50 — 75mm	0.01mm	±3µm
133-144		Metric	75 — 100mm	0.01mm	±4µm
133-145		Metric	100 — 125mm	0.01mm	±5µm
133-146		Metric	125 — 150mm	0.01mm	±5µm
133-147		Metric	150 — 175mm	0.01mm	±5µm
133-148		Metric	175 — 200mm	0.01mm	±5µm
133-149		Metric	200 — 225mm	0.01mm	±5µm
133-150		Metric	225 — 250mm	0.01mm	±6µm
133-151		Metric	250 — 275mm	0.01mm	±6µm
133-152		Metric	275 — 300mm	0.01mm	±6µm
133-153	—	Metric	300 — 325mm	0.01mm	±7µm
133-154	—	Metric	325 — 350mm	0.01mm	±7µm
133-155	—	Metric	350 — 375mm	0.01mm	±7µm
133-156	—	Metric	375 — 400mm	0.01mm	±8µm
133-157	—	Metric	400 — 425mm	0.01mm	±8µm
133-158	—	Metric	425 — 450mm	0.01mm	±8µm
133-159	—	Metric	450 — 475mm	0.01mm	±9µm
133-160	—	Metric	475 — 500mm	0.01mm	±9µm
133-161	—	Metric	500 — 525mm	0.01mm	±9µm
133-162	—	Metric	525 — 550mm	0.01mm	±10µm
133-163	—	Metric	550 — 575mm	0.01mm	±10µm
133-164	—	Metric	575 — 600mm	0.01mm	±10µm
133-165	—	Metric	600 — 625mm	0.01mm	±11µm
133-166	—	Metric	625 — 650mm	0.01mm	±11µm
133-167	—	Metric	650 — 675mm	0.01mm	±11µm
133-168	—	Metric	675 — 700mm	0.01mm	±12µm
133-169	—	Metric	700 — 725mm	0.01mm	±12µm
133-170	—	Metric	725 — 750mm	0.01mm	±12µm
133-171	—	Metric	750 — 775mm	0.01mm	±13µm
133-172	—	Metric	775 — 800mm	0.01mm	±13µm
133-173	—	Metric	800 — 825mm	0.01mm	±13µm
133-174	—	Metric	825 — 850mm	0.01mm	±14µm
133-175	—	Metric	850 — 875mm	0.01mm	±14µm
133-176	—	Metric	875 — 900mm	0.01mm	±14µm
133-177	—	Metric	900 — 925mm	0.01mm	±15µm
133-178	—	Metric	925 — 950mm	0.01mm	±15µm
133-179	—	Metric	950 — 975mm	0.01mm	±15µm
133-180	—	Metric	975 — 1000mm	0.01mm	±16µm
133-223		Inch	2-3″	0.001″	±0.00015″
133-224		Inch	3-4″	0.001″	±0.0002″
133-225		Inch	4-5″	0.001″	±0.00025″
133-226		Inch	5-6″	0.001″	±0.00025″
133-227	—	Inch	6-7″	0.001″	±0.00025″
133-228	—	Inch	7-8″	0.001″	±0.00025″
133-229	—	Inch	8-9″	0.001″	±0.00025″
133-230	—	Inch	9-10″	0.001″	±0.0003″
133-231	—	Inch	10-11″	0.001″	±0.0003″
133-232	—	Inch	11-12″	0.001″	±0.0003″

133-143
133-144
133-145
133-146
133-147
133-148
133-149
133-150
133-151
133-152
133-153
133-154
133-155
133-156
133-157
133-158
133-159
133-160
133-161
133-162
133-163
133-164
133-165
133-166
133-167
133-168
133-169
133-170
133-171
133-172
133-173
133-174
133-175
133-176
133-177
133-178
133-179
133-180
133-223
133-224
133-225
133-226
133-227
133-228
133-229
133-230
133-231
133-232

Технические характеристики

Technology:	Mechanical
Measuring Faces:	Carbide tipped
