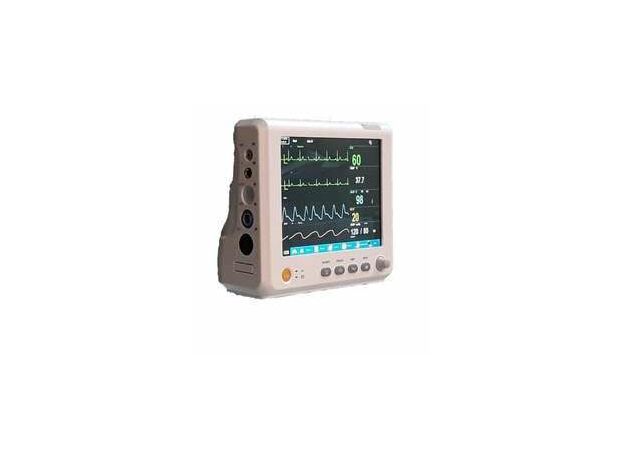

Medsun M8A ICU patient monitoring system, 8 inch Cardiac Monitor

7 875 000 ₽

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

The Medsun ICU patient monitoring system features a bright 8.4′ TFT high-resolution colour display. It can perform standard measurements and has a number of other features, including Patient management, name and age and ID, patient ECG monitoring, Arrhythmia analysis and S-T segment analysis, UI with both Keypad and Touch Screen operation.

Technical Specifications of Medsun M8A ICU patient monitoring system :

Multipara Monitor with 8.4′ TFT, led backlight, 800×480 pixels.
Visual and Audio alarms, adjustable.
Patient management, name and age and ID.
Network with Central Station Software
Audio volume adjustable from 1 ~ 8 level.
Multi-language options: Germany, France, Italian, Turkey, etc
Built-in removable and rechargeable lithium battery
UI with both Keypad and Touch Screen operation.
Memory: Built-in memory or miniSD Memory card. Store more than 1000 pieces of archive
Powerful data storage and management, Trend graph, Trend table, etc
Arrhythmia analysis and S-T segment analysis.
Dimension:210 mm x 130 x 210 mm
Product Net wight: Approx. 2.3KG

Parameters Accuracy of ICU patient monitoring system, Medsun M8A:-

2%(70%~100%)
0% ~ 69% unspecified

Multipara meters by Medsun M8A ICU patient monitoring system:-

a). ECG (Heart rate) readings :

Lead mode:3-lead or 5-lead
HR range:15 ~ 300 bpm

ECG Accuracy:

2bpm or 2%, which is greater

b) SPO2:

Measurement Range: 0 ~ 100%

c) Pulse rate:

Measurement Range:25 ~ 250 bpm
Accuracy: 3 bpm

d) NIBP:

Method: Oscillometry
Mode: Manual/Auto/Continuous
Measurement Range:25 ~ 260mmHg

List of supply with Medsun ICU Patient monitoring system :-

1. ECG Cable 1No. 2. SpO2 Sensor 1No. 3. NIBP Cuff (Adult) with cable 1No. 4. Temperature Sensor 1No. 5. Power Cable 1 No. 6. User Manual 1 No. Estimated Delivery: 5 — 10Days Warranty :

1 Years

Product Specifications Parameters: ECG, SpO2, NIBP, Temperature, Respiration Brand/Manufacturer Brand: Medsun Weight & Dimensions Product Dimension (mm): 210mm x 130 x 210 mm Product Weight: 2.3Kg Display and User Interface Screen Size :
