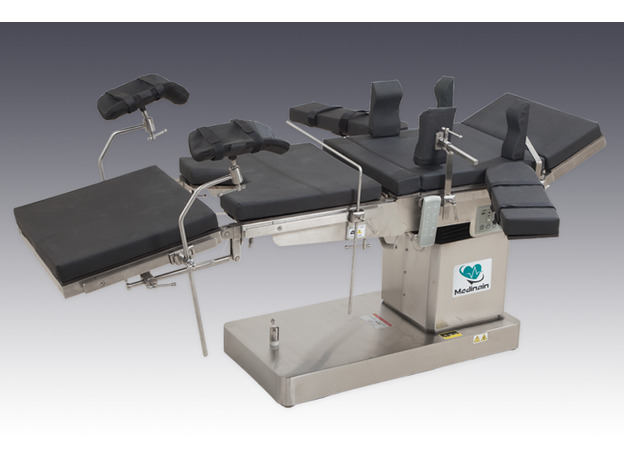

Product Details:-
Material Stainless Steel Overall Dimension Top Dimension L1900mm x W 522mm Height Adjustable 750mm — 1000mm Usage/Application Hospital Model Name/Number ME 1500 (E) Color Black & Silver Brand MEDINAIN Finish Stainless Steel Minimum Height 750mm Power 24 V DC Back Section 60 degree / 25 degree Packaging Type Wooden Kidney Elevator 130 mm Lifting Table Yes Warranty 1 year Model No ME-1500(E)
Features:-
- SS-304
- Surgeons Panel
- Electric (Remote Operated)
- C-Arm Compatible
- Floor Locking
- Zero Positioning
- Top Slide (Optional)
Specification:-
- Fully electrically operated table, five sections, radio-translucent table-top with eccentric
pillars and Die Compressed base.
- Interchangeable head and leg sections (manually).
- All positions operated through cable remote.
- Electric floor locking. (Optional)
- Inbuilt kidney bridge.
- Auto leveling (zero function).
- We are providing two Handsets. Additional fixed control panel provided on the table top,
which can be used in case of failure of main hand set.
- Indication of Battery Back provided in the hand set.
- Handset is providing Dual Memory Function which can be set and reset.
Technical Data:-
Top Dimension
L 1900mm x W 522mm
Height Adjustment
750mm — 1000 mm
Trendelenbrug / Reverse
300° / 250
Lateral Tilt
200° / 200
Kidney Elevator
130 mm
Back Rest ( up / down )
600° / 250
Leg Rest ( up / down
150° / 900
Head Rest ( up / down )
200° / 600
Power Supply
24V DC
Battery Backup
2-3 Hours (optional)
Mains Voltage Capacity
AC 220V+10% 50
Material: S.S Estimated Delivery: 5 To 7Days Warranty :
- 1 Year
Product Specifications Color: silver Brand/Manufacturer Brand: Medinain Weight & Dimensions Product Dimension (mm): L 1900mm x W 522mm Product Weight: 30Kg Find similar
