| Arbitrary function generator with 13 predefined waveforms and arbitrary waveform generation |
| 16 digital channels, includes P6616 digital probe and accessories |
| Enhanced instrument security to enable password protected control of turning on/off all instrument ports and instrument firmware update functionality |
| No Spectrum Analyzer |
| Integrated Spectrum Analyzer with frequency range of 9 kHz to 3 GHz |
| Integrated Spectrum Analyzer with frequency range of 9 kHz to 6 GHz |
Additional Features:
- Bandwidth: 500 MHz
- Bandwidth is upgradeable up to 1 GHz
- Channels: 4
- Sample Rate: 2.5 GS/s
- 20 M record length on all channels
- >, 340,000 wfm/s maximum waveform capture rate
- Digital Voltmeter / Frequency Counter (Free with product registration)
- Performance 6-in-1 integrated oscilloscope with synchronized insights into analog, digital and spectral signals
- TPP0500B: 500 MHz bandwidth, 10X, 3.9 pF. One passive voltage probe per analog channel
- Warranty: Three-year warranty covering all parts and labor on the MDO4000C instrument. One-year warranty covering parts and labor on included probes.
Typical Applications:
- Embedded design
- Power design
- EMI troubleshooting
- Wireless troubleshooting
- Education
- Manufacturing Test and Troubleshooting
Spectrum Analyzer (Optional)
- Frequency range of 9 kHz — 3 GHz or 9 kHz — 6 GHz
- Ultra-wide capture bandwidth ≥1 GHz
- Time-synchronized capture of spectrum analyzer with analog and digital acquisitions
- Frequency vs. time, amplitude vs. time, and phase vs. time waveforms
Arbitrary/Function Generator (Optional)
- 13 predefined waveform types
- 50 MHz waveform generation
- 128 k arbitrary generator record length
- 250 MS/s arbitrary generator sample rate
- Logic Analyzer (Optional)
- 16 digital channels
- 20 M record length on all channels
- 60.6 ps timing resolution
Protocol Analyzer (Optional)
- Serial bus support for I2C, SPI, RS-232/422/485/UART, USB 2.0, Ethernet, CAN, CAN FD, LIN, FlexRay, MIL-STD-1553, and Audio standards
Digital Voltmeter / Frequency Counter (Free with product registration)
- 4-digit AC RMS, DC, and AC+DC RMS voltage measurements
- 5-digit frequency measurements

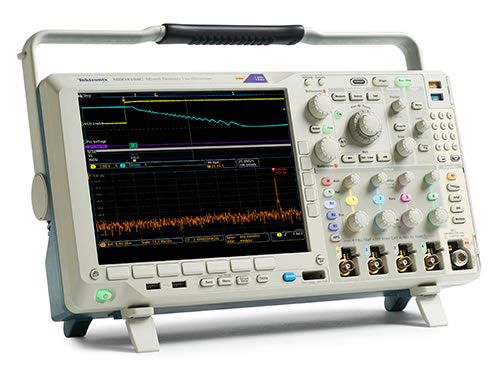

The MDO4054C has the performance you need to solve the toughest embedded design challenges quickly and efficiently. When configured with an integrated spectrum analyzer, it is the only instrument that provides simultaneous and synchronized acquisition of analog, digital and spectrum, ideal for incorporating wireless communications (IoT) and EMI troubleshooting. The MDO4054C is completely customizable and fully upgradeable so you can add the instruments you need now – or later.
Технические характеристики
| Manufacturer | Tektronix |
|---|---|
| Condition | New |
| Channels | 4 |
| Frequency | 500 MHz |
| Record Length | 20 MPts |
| Sampling Rate | 2.5 GS/s |
