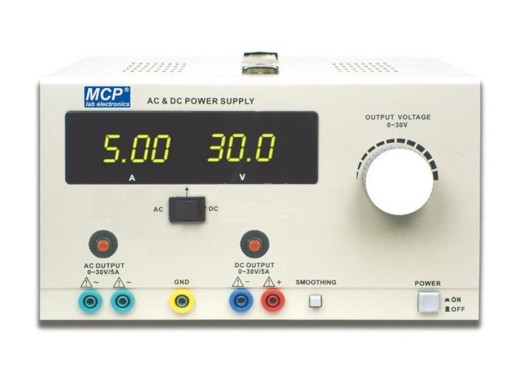

The MCP M10-AD360-5 is a lab power supply that can generate both DC and AC voltage and current. The power supply can provide voltage in the range of 0-30V and current in the range of 0-5A. It is only possible to set the voltage, the current is not adjustable on this power supply. However, the M10-AD360-5 does have a DC smoothing option, with which the generated DC signal can be flattened. The ability to generate AC and DC signals makes this a versatile lab power supply.
Specifications Voltage range 0-30V (AC/DC) Current range 0-5A (AC/DC) Power 150W Resolution 100mV / 10mA Short-circuit resistant Yes Overload protection Yes Dimensions 260 x 160 x 260 mm Weight 7 Kg Accessories
The MCP M10-AD360-5 lab power supply comes standard with:
- Power cord
