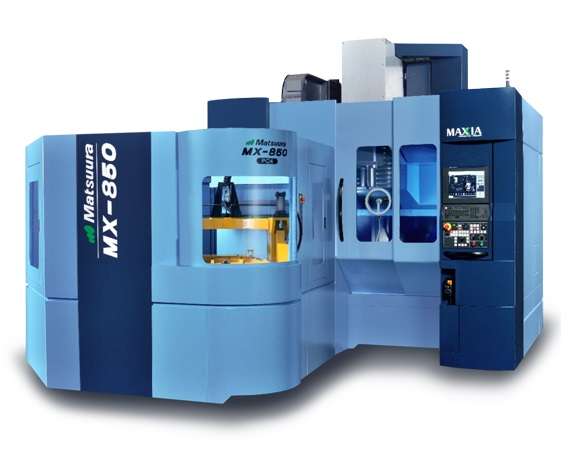

The MX-850 PC4 is a 4-pallet automated version of our MX-850 single table 5-axis vertical machining center model. Configured with 4 pallets and up to 120 tools for extended periods of unmanned machining of large and complex components, the PC4 can accommodate 400kg per pallet and a workpiece size of 850mm diameter x 450mm.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| Max Work Size mm (in) | Ø,850H450 (Ø,33.46H13.77) Ø,850H385 (Ø,33.46H13.77) *with pallet options |
| Spindle Speed RPM | 12,000:BT40 Standard 15,000:BT40 Option 20,000:BT40 Option |
| Travel (x/y/z) mm (in) | 900/780/650 (35.43/30.70/25.59) |
| Loading Capacity kg (lb) | 500 (1,102) Standard 400 (882)Option |
| Travel (a/c) | -125~+30/360 |
| Rapid Traverse (x/y/z) m/min (in/min) | 40 (1,574.80) |
| Rapid Traverse (a/c) min-1 | 17/33 |
| Tool Taper | CAT #40/BT #40 STD (HSK-A63 OPT) |
| Number of Tools | 90:BT40 Standard 120:BT40 Option |
| NC System | Matsuura G-Tech 31i |
| Working Surface mm (in) | Ø,500 (Ø,19.68) Standard Ø,700 (Ø,27.56) Option Ø,500 (Ø,19.68) + FlatTable Option |
| Spindle Motor Power kW | AC 15/22 kW (Low Speed/15min) |
| Max Spindle Motor Torque RPM | 350 N/m at 600 RPM (258 ft/lbs at 600 RPM) [Optional 15,000 RPM Spindle] |
| Max Work Envelope mm (in) | Ø,760mm H450mm (Ø,29.92in H17.71in) Standard Ø,850mm H450mm (Ø,33.46in H17.71in) [with restrictions] |
| Max Tool Diameter mm (in) | Ø,80mm (3.14in) [with adjacent tools] Ø,150mm (5.90in) [without adjacent tools] |
| Max Tool Length mm (in) | 350 mm (13.77 in) |
| Max Tool Mass kg (lbs) | 10 kg (22 lbs) |
| Available Tool Type | Dual-Contact CAT #40 Standard Dual-Contact #40 [Optional] HSK-A63 [Optional] |
| Rotation Angle (a/c) | -125 ~ +30/360 |
| Control System | [Matsuura G-Tech 31i] |
| Voltage V | AC 200/220±,10% V |
| Coolant Tank Capacity L | 560 L |
| Hydraulic Oil Tank Capacity L | 20 L |
| Oil Cooler Tank Capacity L | 14 L |
| Industries | Aerospace and Defense, Automotive and High Performance, Die / Mold, Medical, Oil and Energy |
