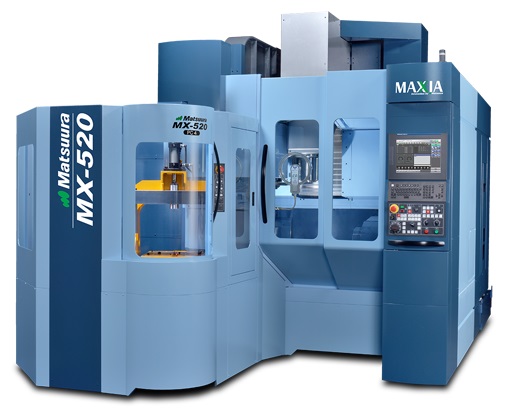

The MX-520 PC4 is a 4-pallet automated version of the MX-520 single table 5-axis vertical machining center model. Offering ease of use and reliable 5-axis machining, the MX series delivers dynamic machining versatility, high accuracy, reliability, and excellent cost-efficient performance.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| Max Work Size mm (in) | D710 x H350 (bullet shape) / pallet type option D520 x H330 |
| Travel (x/y/z) mm (in) | 630/560/510 |
| Loading Capacity kg (lb) | pallet type option 200 / (441) |
| Travel (a/c) | -125~+10/360 |
| Rapid Traverse (x/y/z) m/min (in/min) | 40/40/40 |
| Rapid Traverse (a/c) min-1 | 17/33 |
| Number of Pallets | Option PC4 |
| MAXIA Spindle RPM | 12,000 |
| Max Spindle Motor Torque RPM | 120.0 |
| Industries | Aerospace and Defense, Automotive and High Performance, Die / Mold, Medical |
