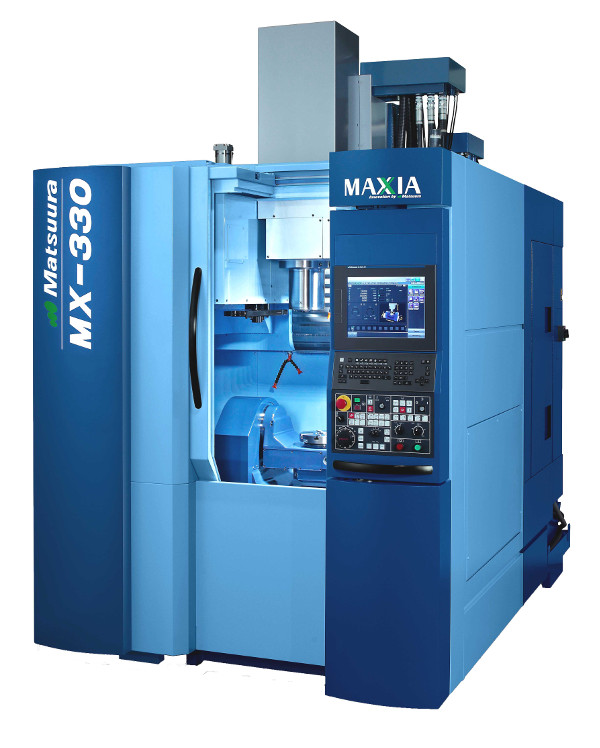

Matsuuras legendary unmanned running technology with the MX-330 comes in the form of a 10 pallet (CAPTO C6 compatible) and 90 tool option, offering superb profit enhancing lights out production utilizing minimal floor space.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| Max Work Size mm (in) | Ø,330H320 (Ø,12.99H12.60) Ø,420H320 (Ø,16.54H12.60) *with conditions PC10:Ø,330H300 (Ø,12.99H11.81) |
| Spindle Speed RPM | 15,000:BT40 Standard 15,000PowerUp :BT40 Option 20,000:BT40 Option |
| Travel (x/y/z) mm (in) | 435/465/560 (17.13/18.31/22.05) |
| Loading Capacity kg (lb) | 80 (176.37) |
| Travel (a/c) | -125~+10/360 |
| Rapid Traverse (x/y/z) m/min (in/min) | 40 (1,574.80) |
| Rapid Traverse (a/c) min-1 | 17/33 |
| Tool Taper | CAT #40/BT #40 STD (HSK-A63 OPT) |
| Number of Tools | 30:BT40 Standard 60:BT40 Standard 90:BT40 Option |
| Max. Tool Diameter | Ø,3.14 in. (with adjacent tools) Ø,5.90 in. (without adjacent tools) |
| Max. Tool Length | 11.81 in. |
| NC System | Matsuura G-Tech 31i |
| Working Surface mm (in) | Ø,250 (Ø,9.84) Standard Ø,250 (Ø,9.84) + Table through Option 6port |
| Industries | Automotive and High Performance, Die / Mold, Medical |
