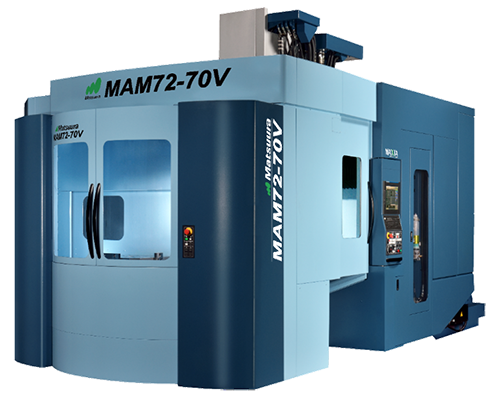

The Matsuura MAM72-70V is designed to handle larger-sized workpieces than Matsuuras previous models. It offers faster response times and delivers higher productivity to meet customers needs while delivering pallet and productivity solutions to keep your work center efficiently producing components around the clock.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X Axis Travel | 29.92 in. |
| Y Axis Travel | 33.26 in. |
| Z Axis Travel | 25.98 in. |
| A-Axis Travel | -120~+120 degrees |
| B-Axis Travel | -120~+30 degrees |
| C-Axis Travel | 360 |
| Working Surface | Ø,19.68 in. |
| Loading Capacity | 880 lb. |
| Max. Work Size | Ø,28.34 xH17.71 in. |
| Spindle Speed | 40 ? 12,000 min-1 (Grease Lubrication) |
| Spindle Drive Motor (Continuous / 2 min) | 15 / 22kW (30 HP) |
| Tool Storage Capacity | 51 (Drum Magazine) |
| Max. Tool Diameter | Ø,3.77 in. |
| Max. Tool Length | 13.77 in. |
