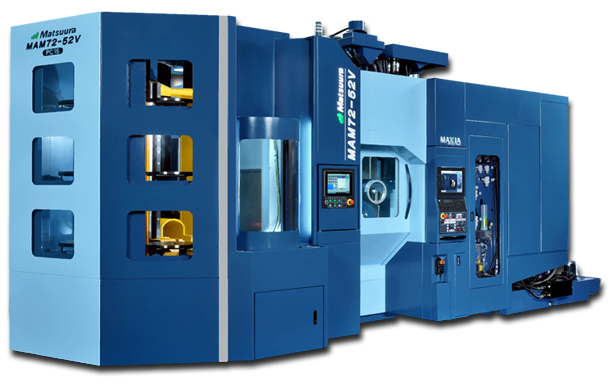

The latest addition to the Matsuura MAM72 Series is an all-in-one CNC machine tool that delivers extended periods of unmanned productivity, and provides versatility in the machining of very small to very large components. The MAM72-52V features a matrix tool magazine (130 tools/330 tool magazine base), PC15 tower pallet system and chip removal system as standard. Keep your work center efficiently producing components around the clock with this new 5-axis vertical machining center.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X-Axis Travel | 39.76 in. |
| Y-Axis Travel | 21.25 in. |
| Z-Axis Travel | 24.01 in. |
| Working Surface | Ø,15.74in. |
| Loading Capacity | 660 lb. |
| Max Work Size | Ø,20.47x H15.74in. |
| Spindle Speed | 40 — 15,000 min-1 (standard) Optional 15K High Torque and 20K |
| Tool Storage Capacity | 130 Tools (Matrix Magazine) Options Up to 530 Tools Available |
| Number of Pallets | 15 Standard |
