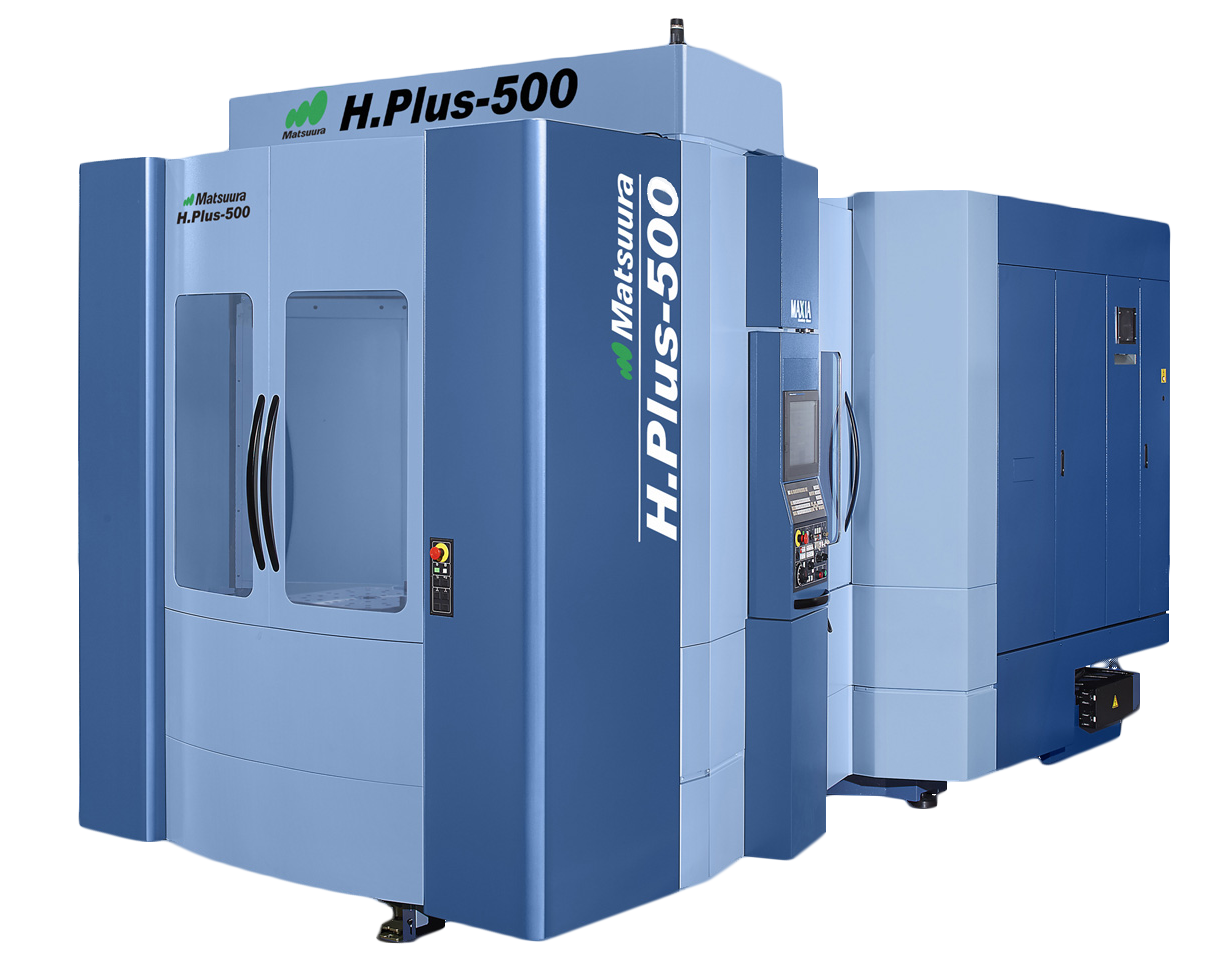

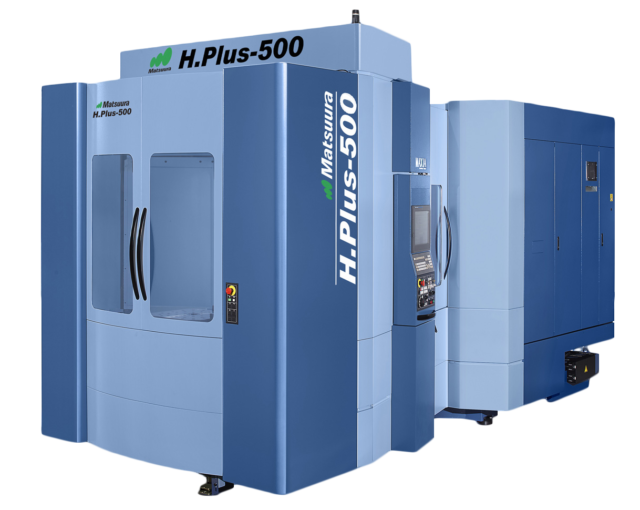

The Matsuura H.Plus-500 incorporates many decades of Matsuura horizontal excellence into one state-of-the-art profit-enhancing platform. Its integrated tools and palette changers can be fully expanded as your business changes and grows. The H.Plus-500 maximizes workflow, has an increased workpiece capacity and achieves high-speed, high-precision and maximum rigidity.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X Axis Travel | 31.49 in. |
| Y Axis Travel | 31.49 in. |
| Z Axis Travel | 31.49 in. |
| Working Surface | 19.68 x 19.68 in. |
| Loading Capacity | 1,100 lb. |
| Max. Workpiece Size | Ø,33.46xH41.33 |
| Spindle Speed | 45 — 12000 min-1 (Oil-air lubrication) |
| Rapid Traverse Rate X/Y/Z | 2362.20 / 2362.20 / 2362.20 IPM |
| Tool Storage Capacity | 60 pcs. (Drum) |
