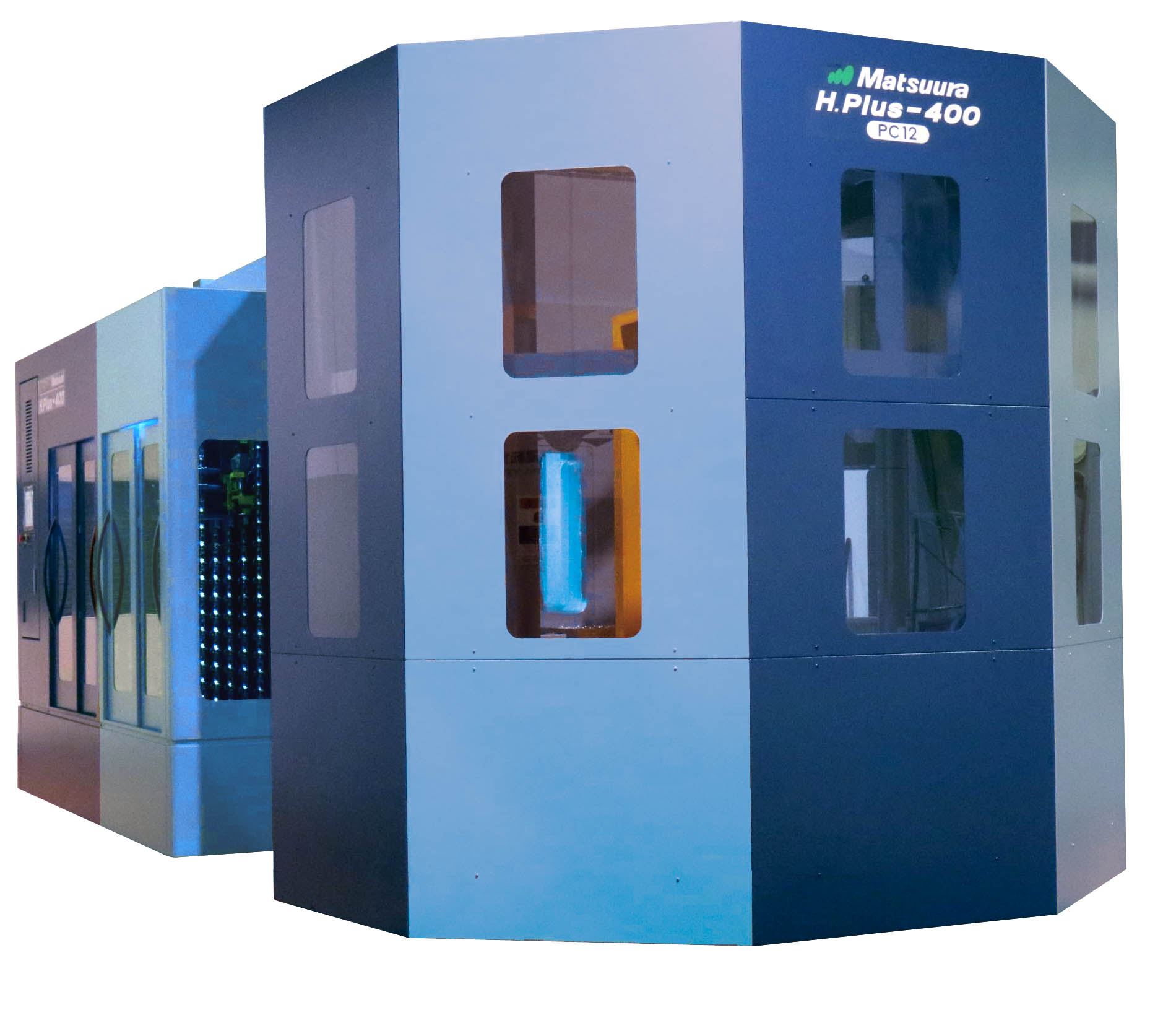

The Matsuura H.Plus-400 horizontal machining center is a highly productive machine tool with high speed, high rigidity and high precision. It is equipped with a #40 taper spindle, 400400 mm pallet and standard 15,000 RPM spindle. An optional 20,000 RPM spindle is available. The H.Plus series delivers long periods of reliable, unmanned operation with numerous tool and pallet storage options that can be easily expanded upon.
Технические характеристики
Specifications
| Specification | Detail |
|---|---|
| X Axis Travel | 22.04 in. |
| Y Axis Travel | 25.19 in. |
| Z Axis Travel | 25.19 in. |
| Working Surface | 15.74 x 15.74 in. |
| Loading Capacity | 880 lb. |
| Max. Workpiece Size | Ø,24.80 x H35.43 |
| Spindle Speed | 15,000:BT40 Standard 20,000:BT40 Optional |
| Rapid Traverse Rate X/Y/Z | 2,362.20/2,362.20/2,362.20 |
| Tool Storage Capacity | 60 :BT40 Standard |
