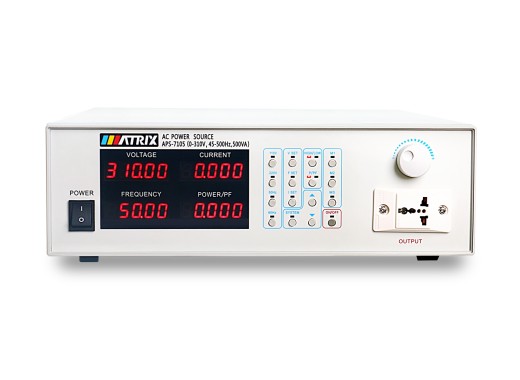

MATRIX APS-7100 Источник питания переменного тока

The Matrix APS-7100 is a programmable AC power source that uses an advanced direct digital frequency synthesizer waveform to achieve high frequency stability. In addition, because of this, the APS-7100 also features good continuity and accurate measurements. Functionality like three sets of memory that can store commonly used parameters and a key lock function ease the use of this power source. The display is divided into five windows displaying voltage, current, frequency, power and power factor separately.
The stabilizing reaction time between 100% loading and unloading is within 20 ms. This power source also has a soft start function that avoids damage to the power supply caused by an instantaneous impulse current of the load. Furthermore, the APS-7100 has an intelligent analysis function that automatically determines a cause of failure, status and displays a code when an alarm is reported. Specifications Power 1 kVA Output voltage 0-310 V (AC) Max output current 8.4 A (@120V)
4.2 A (@240V) Frequency 45-500 Hz (0.01 Hz) Operation mode Synchronized Pulse-Width Modulation Resolution V/A/F 0.01 V/0.001 A/0.01 Hz Connectivity RS232 Protection Over current, over temperature, overload, short circuit Dimensions 430x135x515 mm Weight 20.6 kg

Технические характеристики
