Мастер проверки высокой точности

Mitutoyo High Accuracy Check Master проверяет точность перемещения столов станков и калибрует КИМ с постоянно зажатыми мерными блоками.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

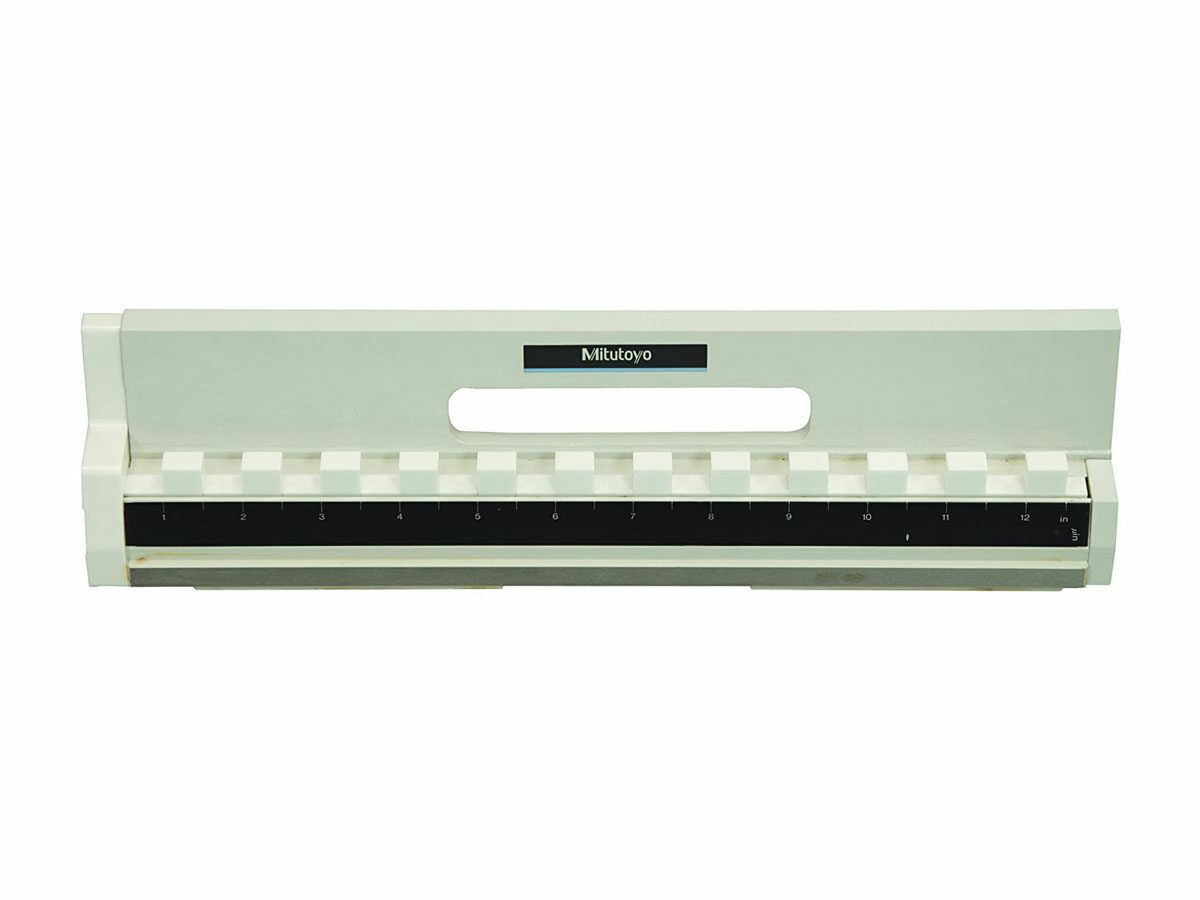

The Mitutoyo High Accuracy Check Master features permanently wrung stacks of either steel or ceramic gage blocks housed in a rigid frame. The Check Master can be used in either vertical or horizontal positions and is ideal for checking the feed accuracy of machine tools, the accuracy of CMM»s, and various other similar applications. Models with ceramic gage blocks have zirconia-based ceramic gage blocks that requires no anti-corrosion treatment for measuring faces and are free from deterioration and dimensional changes over time.

Suitable for use in either vertical or horizontal positions
Available in Metric and Inch
Available with steel or ceramic gage blocks
Straight block stack arrangement ensures precision alignment
Inspection Certificate included
Supplied in a fitted wooden case

Order No.:	Product Image:	Units:	Material:	Range:	Pitch:	Accuracy of block pitch range:	Length:	Parallelism:	Mass:

Order No.:

515-730	—	Inch	Steel	0 — 12″	1″	(Up to 12) ±50″	13″	40µin	3.4kg
515-731	—	Inch	Steel	0 — 18″	1″	(Up to 12) ±50″ / (12-24) ±70″	19″	40µin	5.2kg
515-732	—	Inch	Steel	0 — 24″	1″	(Up to 12) ±50″ / (12-24) ±70″	25″	60µin	6.9kg
515-733	—	Inch	Steel	0 — 40″	1″	(Up to 12) ±50″ / (12-24) ±70″ / (24-40) ±100″	41″	60µin	11.5kg
515-734	—	Inch	Steel	0 — 60″	1″	(Up to 12) ±50″ / (12-24) ±70″ / (24-40) ±100″ / (40 — 60) ±158″	61.5″	80µin	17.3kg
515-740	—	Metric	Steel	0 — 300mm	20mm	(Up to 300) ±1.2mm	331mm	1µm or less	3.6kg
515-741	—	Metric	Steel	0 — 450mm	20mm	(Up to 300) ±1.2mm / (300-600) ±1.8mm	482mm	1µm or less	5.4kg
515-742	—	Metric	Steel	0 — 600mm	20mm	(Up to 300) ±1.2mm / (300-600) ±1.8mm	631mm	1.5µm or less	7.2kg
515-743	—	Metric	Steel	0 — 1000mm	20mm	(Up to 300) ±1.2mm / (300-600) ±1.8mm / (600-1000) ±2.5mm	1037mm	1.5µm or less	12kg
515-744	—	Metric	Steel	0 — 1500mm	20mm	(Up to 300) ±1.2mm / (300-600) ±1.8mm / (600-1000) ±2.5mm / (1000-1500) ±4mm	1546mm	2µm or less	18kg
515-750	—	Inch	Ceramic	0 — 12″	0.5″	(Up to 12) ±50″	13″	40µin	3.4kg
515-751	—	Inch	Ceramic	0 — 18″	0.5″	(Up to 12) ±50″ / (12-24) ±70″	19″	40µin	5.2kg
515-752	—	Inch	Ceramic	0 — 24″	0.5″	(Up to 12) ±50″ / (12-24) ±70″	25″	60µin	6.9kg
515-753	—	Inch	Ceramic	0 — 40″	0.5″	(Up to 12) ±50″ / (12-24) ±70″ / (24-40) ±100″	41″	60µin	11.5kg
515-754	—	Inch	Ceramic	0 — 60″	0.5″	(Up to 12) ±50″ / (12-24) ±70″ / (24-40) ±100″ / (40 — 60) ±158″	61.5″	80µin	17.3kg
515-760	—	Metric	Ceramic	0 — 300mm	10mm	(Up to 300) ±1.2mm	331mm	1µm or less	3.6kg
515-761		Metric	Ceramic	0 — 450mm	10mm	(Up to 300) ±1.2mm / (300-600) ±1.8mm	482mm	1µm or less	5.4kg
515-762	—	Metric	Ceramic	0 — 600mm	10mm	(Up to 300) ±1.2mm / (300-600) ±1.8mm	631mm	1.5µm or less	7.2kg
515-764	—	Metric	Ceramic	0 — 1500mm	10mm	(Up to 300) ±1.2mm / (300-600) ±1.8mm / (600-1000) ±2.5mm / (1000-1500) ±4mm	1546mm	2µm or less	18kg

515-730
515-731
515-732
515-733
515-734
515-740
515-741
515-742
515-743
515-744
515-750
515-751
515-752
515-753
515-754
515-760
515-761
515-762
515-764

Технические характеристики

Provided with Inspection Certificate:	Yes
Optional Accessories:	601167
