Scale reticles for measuring magnifiers, 7x (26mm), 10x (35mm) and 15x (26mm).

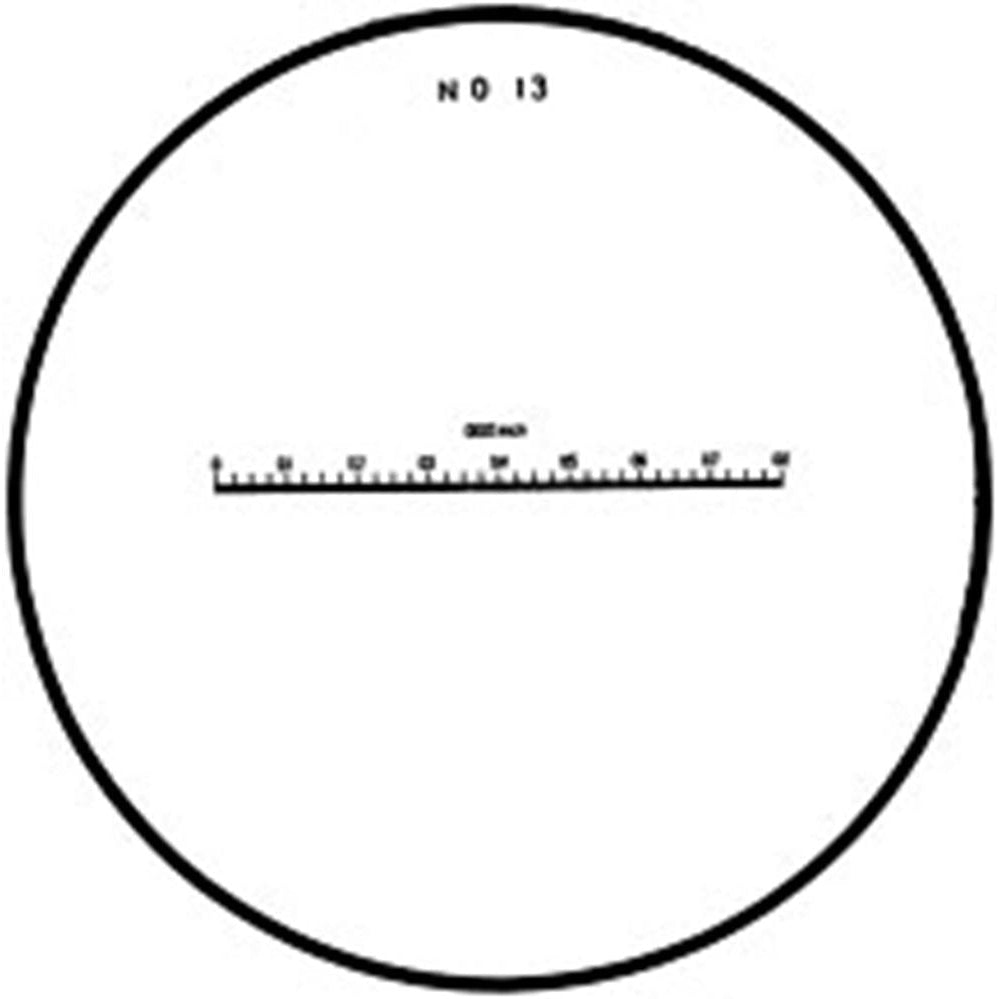

Specifications of reticle No.13:
- Scale: 0 to 0.8″ (0.005″ divisions)
Note: All reticles with the correct diameter can be fitted to magnifiers for special sizing purposes but high-power magnifiers have a limited field-of-view. The 30x magnifier (which uses a 26mm reticle) «sees» only 7mm and therefore these special reticules would rarely be of use.
Divisions of straight scales:
- No. 1 — Length 20mm, divisions 0.1mm
- No. 2 — Length 1mm, divisions 0.05mm. Length 20mm, divisions 0.1mm
- No. 8 — Length 20mm, divisions 0.1mm
Технические характеристики
O22-07-13
