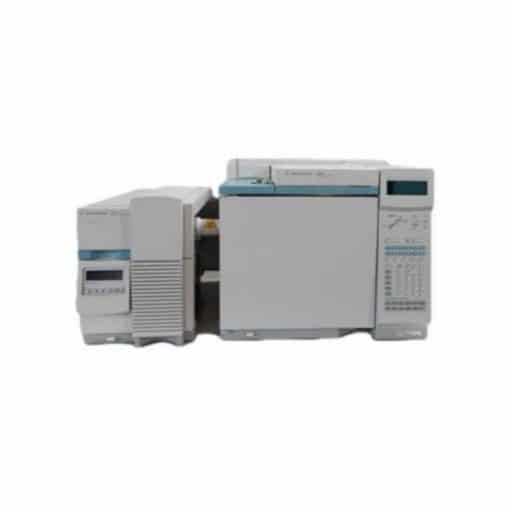

Product Description Selected Ion Monitoring mode Monitor up to 30 masses in SIM mode Store a maximum of 50 data groups with 30 entries each High-energy dynode (HED) electron multiplier detector Equipped with Rotary vane foreline pump Eligible for a 1-Year Full Warranty The HP Agilent 5973 is a high performing mass selective detector that offers unmatched reliability for every use. This stand-alone capillary detector was specifically designed to be used with the HP 6890 Gas Chromatograph series. The HP 5973 MSD system gives operators full control through a data system that features Hewlett-Packard MSD compatible data analysis software. Increase productivity with the following MSD features: Either a 90 L/sec vapor-diffusion or a 250 L/sec turbomolecular high vacuum pump Independently heated electron-ionization ion source Independently heated hyperbolic quadrupole mass filter Independently heated GC/MSD interface Power supplies and instrument control electronics The compatible data analysis software works best with PCs that run on Microsoft Windows XP Professional operating system. This software can be purchased as a single instrument basic data analysis software. Each version includes data acquisition, instrument control, data analysis, automation and customization features. Applications integrated into the software allow for the configuration and customization of the instruments including the HP 5973 and other MSDs. Tuning programs are responsible for voltage regulation in the ion source, calibration of mass assignments and scanning of the control analyzer. Applications for data acquisition allow users to keep an eye on the total ion chromatogram (TIC). The mass spectra of GC peaks can be stored automatically by using the same type of program, specifically by using the scan mode. The selected ion monitoring (SIM) SIM mode allows selective monitoring of particular ions. Data analysis programs permit integration of chromatograms in TIC or SIM as well as the viewing and manipulation of mass spectral data. Users can compare obtained spectra to reference spectra databases in a library search. Users can also quantify data and generate reports with information-analyzing applications. Technical Specifications Mass Spectrometer Mode (standard) EI Modes (optional) PCI, NCI EI with CI source Ion source type 5 241.5 eV Ionization energy 0 315 uA Ionization current 100 350 C Transfer line temperature 150 300 C Quadrupole temperature 150 200 C Mass filter Monolithic hyperbolic quadrupole Mass filter protection Entrance lens Mass range 1.6 800 amu Mass resolution Unit mass adjustable by tune Mass axis stability Beter than 0.10 amu/ 48 h Detector EM with replacement horn Dynamic range (electronic) 10e6 Scan rate (electronic) 10,000 amu/s Write-to-disk 8,000 amu/s SIM 30 ions x 50 groups Pumping system Turbomolecular pump Total flow 2 mL/min (standard turbo) 4 mL/min (performance turbo) Instrument control Data system and local user interface Maintenance access Source, filaments, lenses, mass filter, and detector on removable plate Maintenance scheduling Early maintenance feedback Gas Chromatograph Automatic injector (optional) Automatic alignment, fast injection Liner replacement Compatible with optional flip-top inlet sealing system Injector Split-splitless (standard), others available Oven temperature Ambient +4 450 C Oven ramps / plateaus 6-7 Carrier gases Helium, hydrogen, nitrogen, argon Electronic pnuematic control Auto pressure regulation for split/splitless, septum purge Carrier gas control modes Constant pressure and flow modes, pressure and flow programmable Pressure range 0 100 psi (standard), 0 150 psi (optional) with 0.01 psi resolution, pressure and temperature corrected Retention-time locking RTL ready Flow control Compatible with optional microfluidics controller Data System Simultaneous MS and GC Four signals (up to 2 MS) detector data acquisitions Ionization mode autotunes EI, PCI, NCI Application autotunes BFB, DFTPP Quantitation setup Automated Application reports Environmental, drugs of abuse, aromatics in gasoline File import/export Sequence file/quant and custom report Customization Customization Security Password and audit trail Spectral libraries (optional) NIST, Wiley, Pfleger-Mauer Drug, Stan pesticide Spectral and RTL databases (optional) Pesticides and endocrine distrupters, volatiles, PCBs, toxicology, FAMEs, flavors, organotin compounds 21CFR11 Compliance Optional software available Other capabilities (optional Deconvolution linked with RTL database Support life Ten-year use guarantee Physical (EI system with standard turbo) Dimensions (W x D x H) 88 cm x 56 cm x 50 cm Weight 88 kg Download Agilent 5973 Data Sheet
Технические характеристики
Technical Specifications
| Mass Spectrometer | |
| Mode (standard) | EI |
| Modes (optional) | PCI, NCI EI with CI source |
| Ion source type | 5 — 241.5 eV |
| Ionization energy | 0 — 315 uA |
| Ionization current | 100 — 350 ‘C |
| Transfer line temperature | 150 — 300 ‘C |
| Quadrupole temperature | 150 — 200 ‘C |
| Mass filter | Monolithic hyperbolic quadrupole |
| Mass filter protection | Entrance lens |
| Mass range | 1.6 — 800 amu |
| Mass resolution | Unit mass adjustable by tune |
| Mass axis stability | Beter than 0.10 amu/ 48 h |
| Detector | EM with replacement horn |
| Dynamic range (electronic) | 10e6 |
| Scan rate (electronic) | 10,000 amu/s |
| Write-to-disk | 8,000 amu/s |
| SIM | 30 ions x 50 groups |
| Pumping system | Turbomolecular pump |
| Total flow | 2 mL/min (standard turbo)
4 mL/min (performance turbo) |
| Instrument control | Data system and local user interface |
| Maintenance access | Source, filaments, lenses, mass filter, and detector on removable plate |
| Maintenance scheduling | Early maintenance feedback |
| Gas Chromatograph | |
| Automatic injector (optional) | Automatic alignment, fast injection |
| Liner replacement | Compatible with optional flip-top inlet sealing system |
| Injector | Split-splitless (standard), others available |
| Oven temperature | Ambient +4 — 450 ‘C |
| Oven ramps / plateaus | 6-7 |
| Carrier gases | Helium, hydrogen, nitrogen, argon |
| Electronic pnuematic control | Auto pressure regulation for split/splitless, septum purge |
| Carrier gas control modes | Constant pressure and flow modes, pressure and flow programmable |
| Pressure range | 0 — 100 psi (standard), 0 — 150 psi (optional) with 0.01 psi resolution, pressure and temperature corrected |
| Retention-time locking | RTL ready |
| Flow control | Compatible with optional microfluidics controller |
| Data System | |
| Simultaneous MS and GC | Four signals (up to 2 MS) detector data acquisitions |
| Ionization mode autotunes | EI, PCI, NCI |
| Application autotunes | BFB, DFTPP |
| Quantitation setup | Automated |
| Application reports | Environmental, drugs of abuse, aromatics in gasoline |
| File import/export | Sequence file/quant and custom report |
| Customization | Customization |
| Security | Password and audit trail |
| Spectral libraries (optional) | NIST, Wiley, Pfleger-Mauer Drug, Stan pesticide |
| Spectral and RTL databases (optional) | Pesticides and endocrine distrupters, volatiles, PCBs, toxicology, FAMEs, flavors, organotin compounds |
| 21CFR11 Compliance | Optional software available |
| Other capabilities (optional | Deconvolution linked with RTL database |
| Support life | Ten-year use guarantee |
| Physical (EI system with standard turbo) | |
| Dimensions (W x D x H) | 88 cm x 56 cm x 50 cm |
| Weight | 88 kg |
