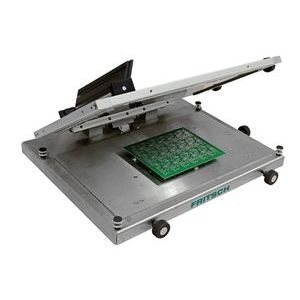

The manual stencil printer printALL005L is the continuation of the printALL005. Both systems have the same solid structure and are extremely easy to use. These are the basics for a clean and reproducible stencil printing, so that processing for fine structures is no problem. The printALL005L can accommodate circuit boards with a size of up to 490 x 380 mm. Especial at manual printing different stencil sizes are often in use. Additional there are small stencils only few millimeters larger than the stencils. With the help of frames for prototypes the stencils are professionally tensioned and coated. FRITSCH offers hand-squeegees in different sizes (> 250 mm) for the usual manufacturing. With the built-in squeegee guide, this solid construction ensures that the media is applied evenly. To guarantee a clean and trouble-free handling of small or flexural PCBs FRITSCH offers the flexible vacuum option with free-positionable suction cups. The Magnet-PCB-fixture-set fixes and supports the PCBs and enables the printing on two sides.
Технические характеристики
CharacteristicsControlmanualNumber of colorsfor solder pasteApplicationsSMT
