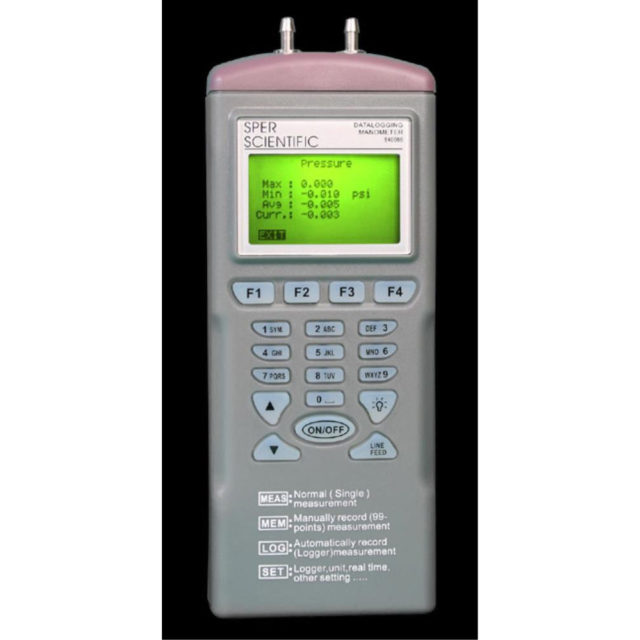

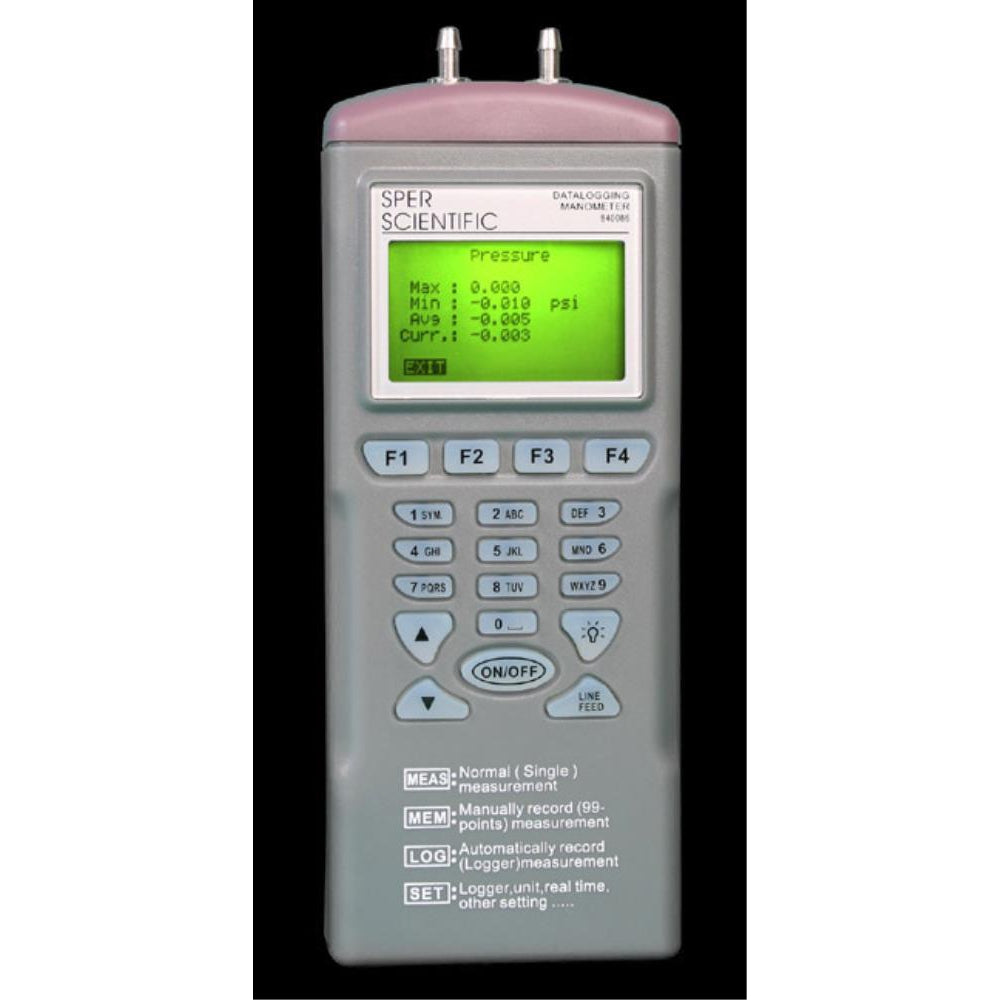

Automatically log up to 12,000 readings with date and time stamps and download them to your computer, or manually record and review 99 readings on the meter»s display. Features a user friendly menu, backlit dot matrix display, auto power off and a tripod screw. This portable meter is ideal for measuring low differential pressure in clean rooms, test and balance, medical equipment, HVAC, pneumatic systems and computer peripherals. Reads gauge and differential pressure in 11 units of measure. Comes in a hard shell carrying case complete with 4 standard AAA batteries, pressure connection hose, instructions, computer cable and software.
Meter 840086 840098 840099 Maximum Pressure Positive or Negative 20 PSI Accuracy ±0.3% fs at 25 deg. C Repeatability ±0.2% typ, Max ±0.5% fs Combined Linearity and Hysteresis ±0.29 typ, Max ±1.0% fs Weight 255g Dimensions 208 x 70 x 40mm Unit of Measure Range Resolution Range Resolution Range Resolution PSI 5 0.003 2 0.001 15 0.01 In H²0 138 0.1 55.36 0.01 415.2 0.1 Bar 0.345 0.001 0.138 0.001 1.034 0.001 mbar 345 0.2 137.9 0.1 1034 1 Cm H²0 352 0.2 140.6 0.1 1054 1 mm of Hg 259 0.2 103.4 0.1 775.7 0.1 Oz Inch² 80 0.05 32.48 0.01 240.0 0.1 kg cm² 0.35 0.001 0.141 0.001 1.055 0.001 kPa 34.5 0.02 13.79 0.01 103.4 0.1 Ft H²O 11.5 0.01 4.614 0.01 34.6 0.01 In Hg 10.2 0.01 4.072 0.01 30.54 0.01
Optional accessories
840089 Rubber holster
840054 USB cable
840096 AC adapter
Available with NIST traceable certificate of calibration — V840086C, V840098C, V840099C
