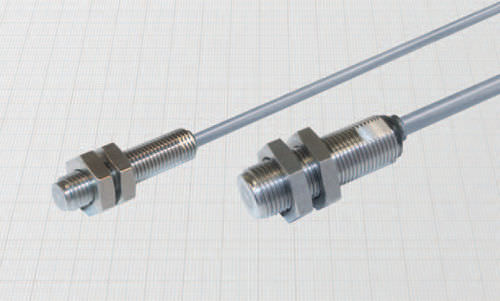

Amplified in d.c. 3 wires with LED • Detection of magnets • Cable output • General Features: These sensors are completely electronic and are activated by an external magnetic field, not depending by the polarity of the field. The activation distance depends by the power of the magnet (see on page C-12), which must be ordered separately. Main advantages of static output sensors are unlimited electric life, protection against short circuit and lines transients, high switching frequency and no bounces on switching edges. The output status is indicated by LED. The extremely strong construction allows the use in the most difficult conditions even with high pressures on the housing. Technical data: • Supply voltage (UB): 10 ÷ 30 Vdc • Max ripple: 10% • No-load supply current (Io):
Технические характеристики
CharacteristicsTechnologymagneticShapecylindricalMountingthreadedProtection levelIP67Other characteristicswith LED light, with amplified output
