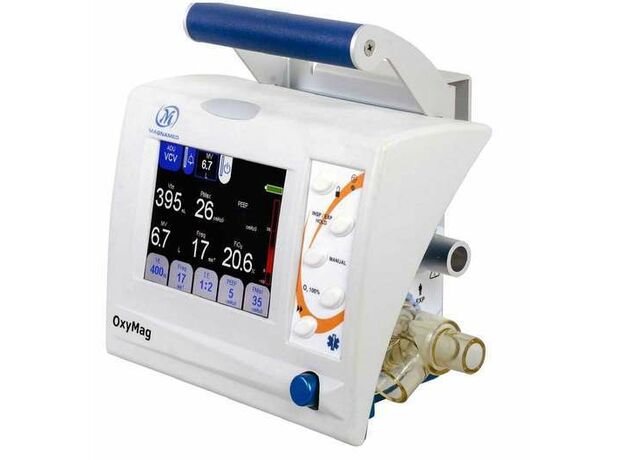

Brand: Magnamed Model: Oxymag
Specifications of Magnamed Oxymag Ventilator: Brand Magnamed Model Oxymag Modes of ventilation CMV(VC), CMV(PC), AV(VC), AV(PC), SIMV(VC) Type Digital Patient Age Group Adult, Pediatric, Neonatal Application Hospital, Clinical Purpose, Veterinary Purpose Operation Mode Battery Operated, Electricity Operated Portable Yes Features Magnamed Oxymag Ventilator:
MAGNAMED, Brazil, manufactures OXYMAG. This is a top-end transport, emerging, and post-recovery ventilator with characteristics that make it even in ICUs beneficial. 5.7 ‘touch screen, all major modes, invasive and non-invasive ventilation, full surveillance with numerous digital windows, graphs, and loops.
Most importantly, it can be used in patients with preterm infants, pediatric patients, and adults.
- Excellent mobility weighs just 3.25 Kgs.
- Simple design
- Superior performance
- 6.5 Hrs of battery backup
- FiO2 monitoring
- Optional SpO2 & EtCO2 monitoring capability
- Full feedback from the patient and all alarms
1) User interface:
- Type and Size: TFT-LCD touchscreen 5.7′
- Weight: 3.0 kg (6.6 lbs)
- Dimensions: 254 x 230 x 185 mm (10 x 9.0 x 17.3 inch)
- Communication/Interface: RS-232C ports U
2) Operating Conditions Specifications:
- Electrical power supply: 100 to 240 V, 50/60 Hz
- 12 VDC external: yes
- Battery: 6.5 hours
- O2 inlet: 39 to 87 psi (270 to 600 kPa)
- Standard connection available: DISS (optional NIST)
- Temperature: -18 to 50°C (0 to 122°F)
- Barometric pressure: 600 to 1.100 cm H 2O (or hPa ou bar)
- Relative humidity: 15 to 95%
3) Parameter adjustments:
- Type of patient: Adult, Pediatric and Neonatal
- Tidal volume: 20 to 2.500 ml
- Respiratory rate: 0 to 150 bpm
- Inspiratory flow: 0 to 150 l/min
- Rise time: 0 to 2,0 s
- Inspiratory time: 0,1 to 10 s
- Inspiratory pressure: 1 to 60 cm H 2O (or hPa or mbar)
- Peep : 0 to 40 cmH 2O (or hPa or mbar)
- Support pressure /∆psupp: OFF, 5 to 60 cm H 2O (or hPa or mbar)
- Flow cycling (% of peak flow): 5 to 80 %
- I: E ratio: 1:4 a 4:1
- O2 Concentration : OFF, 35 to 100%
- Trigger sensitivity (Pressure trigger) : OFF, -0,2 to -10 cmH 2O (or hPa or mbar)
- Trigger sensitivity (Flow trigger) : OFF, 0,5 to 30 L/min
- Type of inspiratory flow: Constant, decelerating, accelerating, and sine
Estimated Delivery: 5 To 10 Days Warranty :
- 1 Year
- From manufacturer
Product Specifications Product Name : Magnamed Oxymag Ventilator Model : Oxymag Qty./BOX: 1 Brand/Manufacturer Brand: Magnamed Weight & Dimensions Product Dimension (mm): 254 x 230 x 185 mm Product Weight: 3Kg Display and User Interface Screen Size :
- 5.7 Inch
