Description

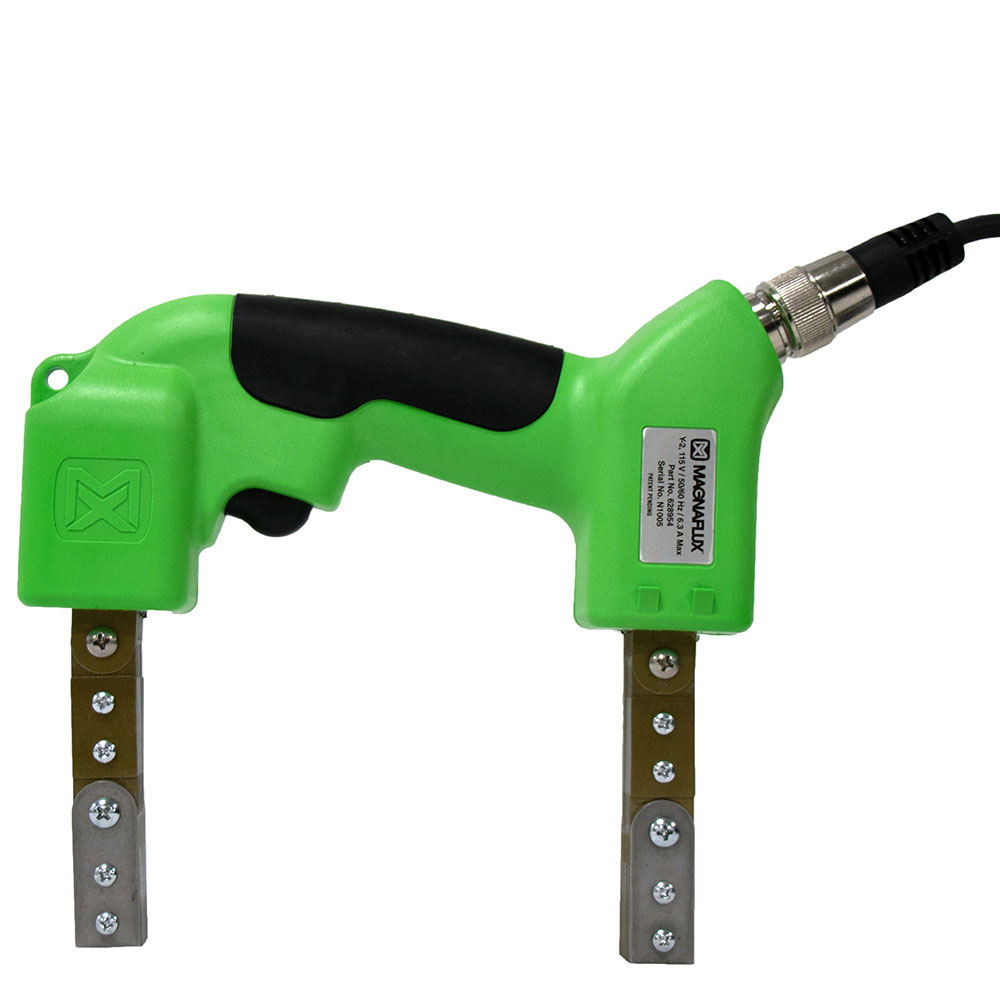

The Magnaflux Y-2 Yoke is a lightweight (4.8 lbs) ergonomic AC electromagnetic yoke that improves productivity and minimizes operator arm and wrist fatigue. The Magnalfux Y-2 Yoke produces a strong AC magnetic field to facilitate the detection of surface indications during magnetic particle testing.
Ergonomic & Designed for Rugged Use
The Magnflux Y-2 Yoke with an ergonomic grip and trigger, and it is ideal for rugged field inspections as it has an ingress protection rating of IP54. The yoke features an interchangeable cord and isolated trigger switch. As a result, it offers maximum uptime, so if the cord ever gets cut, it is easy to swap in a new cord in seconds.
Bright LED Illumination
The Magnaflux Y-2 Yoke has an optional, very bright LED attachment to assist in illuminating inspection areas while you are performing magnetic particle inspections.
All-in-One Kits Available
Complete kits are also available with the Magnaflux Y-2 Yoke, which include #1 Gray and #8A Red magnetic powders, a yellow paint marker, and cleaning cloth, along with a convenient carrying case.
Benefits
- Increase inspector productivity and reduce physical fatigue
- Reduce arm strain, wrist fatigue and overall physical stress through a lightweight and ergonomic design
- Mutli-directional positioning
- Long-lasting, durable design made to work for years to come
- Swap out cords and triggers easily, ensuring your work doesn’t get interrupted and tool loss doesn’t occur due to accidental damage
- Rigorous IP54 rating means dust and dangerous water damage will not occur with its o-ring sealed housing.
Applications: Automobile Parts, Off-Road Equipment, Farm Equipment, Welds, Castings, Forgings, Leak Testing, Pressure Vessels, Aircraft, Marine, Construction, Maintenance, Petroleum Pipelines, Power Plant Inspections, General Metalwork.
Технические характеристики
Specs
| Product Properties | |
| Electrical Requirements | |
| North American PN 628554 | 110-115V, 60 Hz 4.3 A max or 50 Hz 6.3 A max (Type B plug) |
| European PN 628555 | 220-230V, 50/60 Hz: 2.6 A max (Type F plug with Type G adapter) |
| Chinese PN 628560 | 220-230V, 50/60 Hz: 2.6 A max (Type I plug) |
| Waveform | AC |
| Tangential Field Strength | >, 2kA/m at midpoint between legs / poles |
| Lifting Force | >, 10 lb / 4.5 kg (44 N) |
| Duty Cycle | 50%, max on time is 90 seconds |
| Ingress Protection (IEC 60259) | IP54 |
| EN/EC | CE / WEEE / RoHS |
| Weight | 4.8 lb / 2.2 kg (Yoke only) 6.2 lb / 2.8 kg (with cord) |
| Leg / Pole Span | 2.5 — 10.5 in / 6.4 — 27 cm |
| Contact / Pole Size | 1.00 x 1.75 in / 25 x 19 mm |
| Cord Length | 12 ft / 3.6 m, detachable |
| Specifications | ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024, ISO 9934, API 6A, AWS D1.1 |
