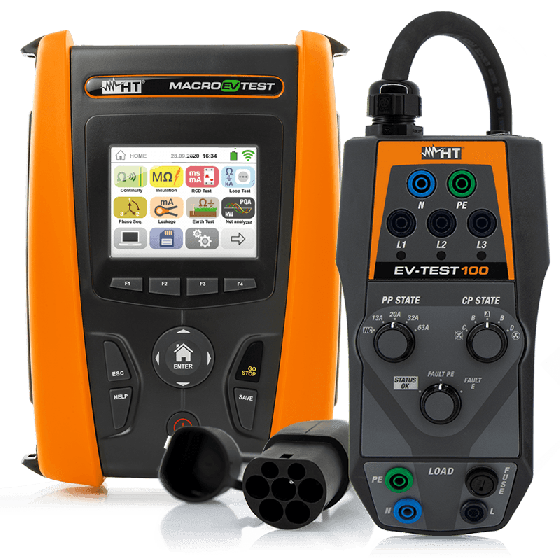

MACROEVTEST HT Instruments Insulation Meter
MACROEVTEST Instrument for checking electric vehicle charging stations and electrical safety
Features:
MACROEVTEST, the HT innovation regarding the verification and control of electric car charging stations (EVSE) in accordance with the IEC / EN 61851-1 and IEC / EN60364-7-722 standards, and for safety tests in environments civil and industrial CEI 64.8.
Specifications:
Functions
- Sequence of tests for the verification of electric columns with EV-TEST100 adapter
- TRMS
- Insulation with test voltages 100, 250, 500, 1000VDC
- Continuity of protective conductors with 200mA
- Tripping time and current of RCDs type B, A, AC Standard, Selective and Delayed up to 1A
- Tripping time and current of RCDs with separate clamp jaws type B, A, AC Standard, Selective and Delayed up to 10A With optional accessory RCDX10
- Non-trip earth resistance
- Earth resistance by voltammetric method
- Resistance of the single earth rods with clamp With optional accessory T2100
- Ground resistivity by 4-wire method
- Loop/Line impedance, Phase-Phase, Phase-Neutral, Phase-PE With optional accessory IMP57
- Measurement of percentage voltage drop on the line
- AUTO test (Non-trip ground resistance, RCD, Insulation) in sequence
- Contact voltage
- Phase sequence
- Leakage current with optional clamp meter
- Measurement of Voltage, Current, Active, Reactive, Apparent Power (1)
- Measurement of Cosphi, Power Factor (1)
- Voltage and current harmonics up to the 25th and THD% 25ª
- Protection category CAT IV 300V
- Measurement of environmental parameters (°C,°F, %RH, Lux)
- Test with remote lead PR400
- Help on line on the display
- Internal memory for measured data saving
- Optical/USB serial port for PC connection
- Integrated WiFi connection and compatibility with HTANALYSIS App
- Size (LxWx H) (mm) 225 x 165 x 75mm
- Weight in grams (batteries included) 1.2kg
Guidelines
- 17th edition
- CEI 64-8
- CEI 64-8 612.2
- CEI 64-8 612.3 .4 .5
- CEI 64-8 612.6.1
- CEI 64-8 612.6.2
- CEI 64-8 612.6.3
- CE MARK
- DPR 462 del 22/10/2001
- EMC 2014/30/EU
- EMC: IEC/EN61326
- EN50522
- EN61008
- IEC/EN6090-0
- IEC/EN61010-1
- IEC/EN61557-1
- IEC/EN61557-2
- IEC/EN61557-3
- IEC/EN61557-4
- IEC/EN61557-5
- IEC/EN61557-6
- IEC/EN61557-7
- LVD 2014/35/EU
- UNE20460
- VDE 0100
Технические характеристики
| Manufacturer | HT Instruments |
|---|---|
| Condition | New |
| Test Voltage | 1 kV |
