Description

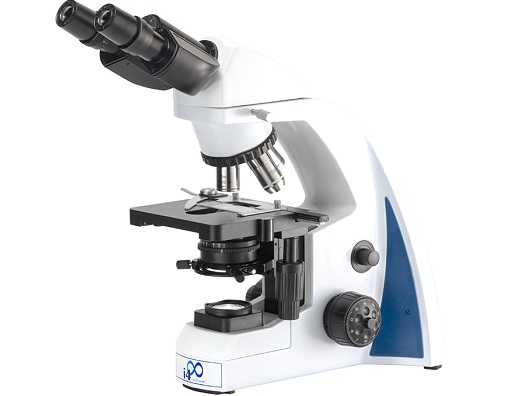

The i4 modular series microscope features exceptional optical quality and expandability for top-notch performance in the lab. Use the rotating head to adjust the height for taller users. Infinity Plan and Semi-Plan optics with a 30-year anti-fungal coating match quality with value within any clinic»s budget. With cool, long-life LED illumination, the i4 Infinity microscope is the perfect choice for durability, dependability, and superior imaging in the laboratory.
HEAD
- Binocular (Seidentopf), Trinoc available
- Digital cameras and adapters available
- Diopter adjustment
- Inclined 30°, rotates 360°
- 10X/18 WF Eyepieces
- (10X/20X Super WF HP eyepieces available)
- Interpupillary distance range 48-75mm
NOSEPIECE
- Reverse quadruple nosepiece
- Multiple ball bearing mounted
OBJECTIVE
- Infinity Semi-Plan or Plan objectives
- 4X, 10X, 40XR, 100XR (oil)
- 50X (oil) objective is also available
- Anti-fungal, parfocal, parcentric, color-coded
STAGE
- Mechanical stage (133mm x 143mm)
- Coaxial drive controls, metal rack & pinion
- Range of traverse: 78mm x 50mm
- Stage locking lever
- Slow-close hydraulic slide finger
FOCUS
- Coarse adjustment: range of 15mm
- Fine adjustment: graduation of 2μm
- Tension control knob
ILLUMINATION
- Moveable Abbe condenser, NA 1.25
- Iris Diaphram
- LED “daylight” long-life light source
- Variable light adjustment
100-240V / 50-60Hz automatic-switching electronics
- 3-prong UL-listed power cord
- Medical-Grade Microscope
- Anti-Fungal Coating on All Lenses
- LED “daylight” long life illumination
OPTIONS
- Phase contrast, 50x oil objective, camera
attachments, eyepiece pointer, and more.
WEIGHT AND DIMS
- Height: 14.1” (352.5 mm)
- Length: 10.7” (267.5 mm)
- Width: 6.1” (152.5 mm)
- Weight: Binoc: 16.0 lbs. (7.26 kg)
- Trinoc: 16.6 lbs. (7.53 kg)
