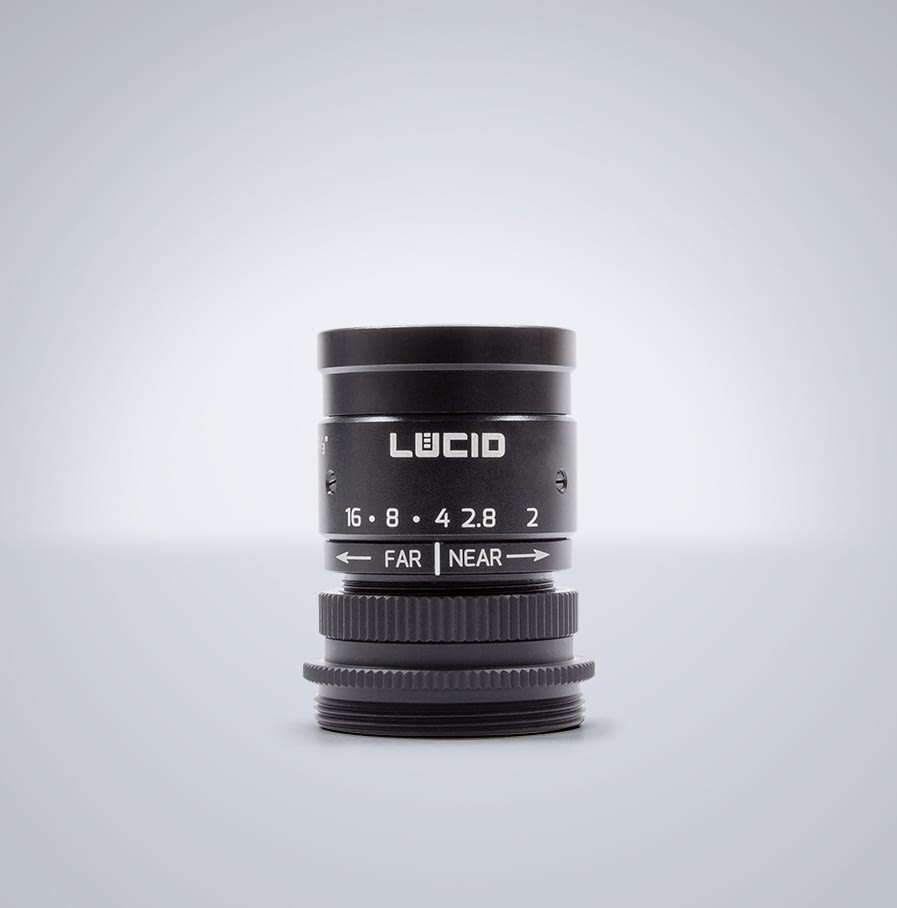

| Model # | Lucid NF120-5M-C |
|---|---|
| Focal Length | 12mm |
| Iris Range (f no.) | f2.0 f16 |
| Angle of View (H x V) * * Mounted to 2/3” sensor cameras | 41.2° x 31.02° |
| Focus Range (from front of the lens) | ∞ 100mm |
| Operation of Focus | Manual |
| Operation of Iris | Manual |
| Universe Model # | BL120C |
|---|---|
| Filter Thread | M22.5 x 0.5mm |
| Mount | C-Mount |
| Sensor Size (max.) | 2/3” |
| TV Distortion | -1.20% |
| Diameter | φ24 x 48.05mm |
| Weight | 40g |
| Locking Mechanism | Lock ring |
