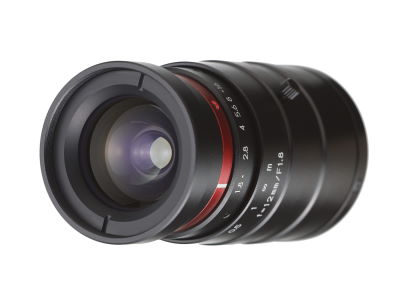

The Kowa LM16HC-VIS-SW lens captures both visible and SWIR light with virtually zero focus shift. Thus, an object can be imaged with visible, NIR and SWIR light sources in rapid succession, without having to refocus the lens.
This lens excels in installations where a camera must image objects using a wide range of wavelengths. Examples include fruit, vegetable and nut sortation, packaged product inspection, anti-counterfeiting tasks, and high-end surveillance. This Kowa HC-VIS-SW lenses pair especially well with cameras having a Sony SWIR image sensor.
Features include:
* Kowa ultra-wideband multi-coating for increased light transmission
* 3.1 μm resolving power at select wavelengths
* Extra-low-dispersion glass for greatly reduced chromatic aberration
* Thumb screws lock focus and iris in place
Технические характеристики
Calculate Field of View
Mechanical
| Lens Mount: | C-Mount |
| Length: | 78.2 mm |
| Filter Thread: | M30.5 x .5 |
Optical
| Lens Type: | General |
| Focal Length: | 16 mm |
| Center Resolving Power: | 3.13 m, 160 lp/mm |
| Corner Resolving Power: | 5.00 m, 100 lp/mm |
| Minimum Object Distance: | 200 mm |
| F#: | 1.8 — 16.0 |
| Image Circle: | 16.00 mm (1) |
Environmental
| Operating Temperature: | -10 to 50C |
| Storage Temperature: | -20 to 60C |
