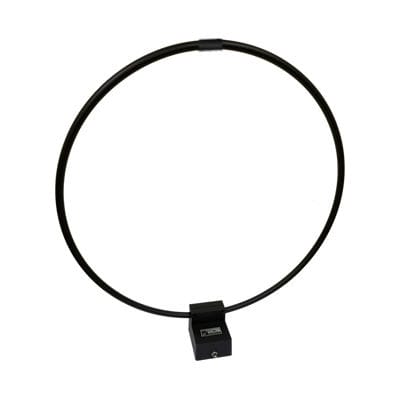

This Passive Loop Antenna is electrostatically shielded and is an excellent solution for low frequency magnetic field emissions and immunity testing in the frequency range of 20 Hz to 1 MHz. Features 20 Hz to 1 MHz Emissions and Immunity Testing CISPR, MIL-STD compliance testing Rugged Construction Three Year Warranty Product Details The primary field component responsible for interference is the magnetic field for frequencies less than 30 MHz. This Passive Loop Antenna is designed with a balanced faraday shield for magnetic field emissions and immunity type measurements. The loop antennas electrostatic shield minimizes the E-field response for a more accurate magnetic field measurement. With emerging technologies like wireless power and possible changes for radiated emission test distances, passive loop antennas are an ideal test solution. The SAS-565L passive loop antenna covers the 20 Hz to 1 MHz frequency range, has a 1/4-20 thread for easy tripod mounting and comes with individual calibration results per IEEE 291 section 2.2.1
Технические характеристики
CharacteristicsNetworkradioTypeloopOther characteristicsrugged, passiveApplicationsmeasurement, for EMI/EMC testingFrequency
Max.: 1,000,000 Hz
Min.: 20 Hz
