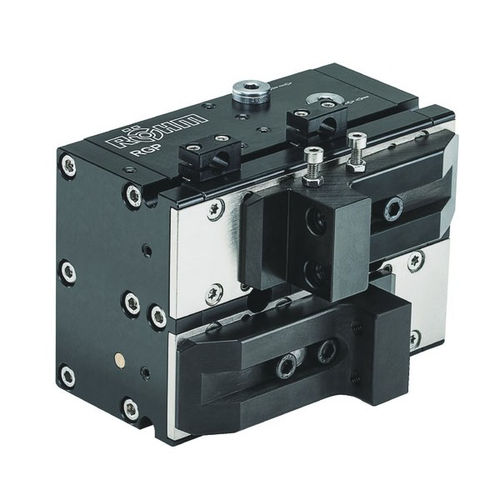

• Available in sizes 30, 40 and 50 with integrated seal — optionally with gripping force securing device. • High precision thanks to double-piston drive synchronized via gear wheel. • Centrically clamping in compact design made of high-strength, hard-coated aluminum alloy • All functional parts made of hardened steel for maximum service life • Robust double piston guide in compact design • Optional inductive and magnetic position sensors • Optionally available with FKM seals for higher temperatures up to 150°C (on request) • Integrable purge air connection to prevent contamination Sealed large-stroke gripper for handling large parts and high part variety. • High gripping force with simultaneously high jaw stroke by means of double-acting pressure pistons • High torque support for using long gripper fingers thanks to elongated jaw guide • Sealed for rough ambient conditions with quad-ring seal and highly precise intermediate jaws • Maximum flexibility thanks to versatile connection and fastening options
Технические характеристики
CharacteristicsOperationpneumaticTypeparallelNumber of jaws2-jawApplicationhandling, for heavy loads, for large partsOptionscompact, double-acting, long-stroke, precision, magneticGrip strength
1,380 N
Stroke
40 mm (1.575 in)
