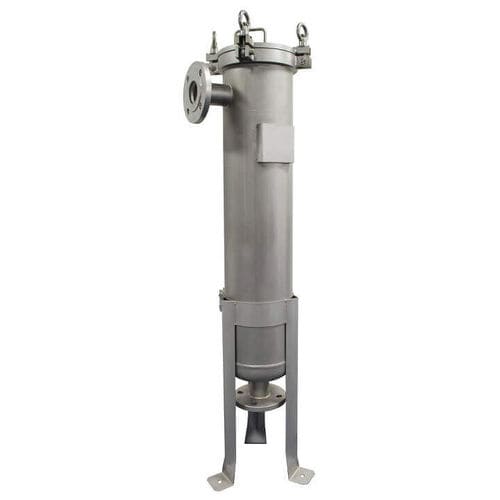

The KBF fi lter is used for the fi ltration of liquid media in industrial applications. Alternatively, the fi lter can be fi tted with bags or a strainer insert. The fi lters are not approved for gases. KBF series fi lters are available as side outlet (see pict. 1–3) in a stainless steel version 1.4301 (SS304) and 1.4401 / 1.4408 (SS316). The fi lter consists of a fi lter vessel, height-adjustable frame (feet), strainer support, down-holding device and, optionally, the fi lter bag. The medium enters the fi lter vessel through the side inlet and fl ows through a fi lter bag that is reinforced by a strainer support, from the inside to the outside. In addition to the recess and the down-holding device, the strainer support ensures that the fi lter bag is properly seated. Notice: The compatibility between medium and vessel or sealing material is the responsibility of the operator. The design of the pressure vessel is based on a quasi-static operation (load cycle number 1000 according to AD 2000 Merkblatt S1, section 1.4). Max. Differential pressure inlet — outlet 2 bar.
Технические характеристики
CharacteristicsDesigned forliquidFiltration elementstrainer, single-bagMaterialstainless steelFiltration size
Max.: 2,000 µm
Min.: 0.8 µm
