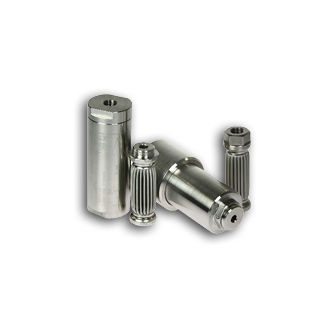

Compact filters for diverse applications Filters are used in fluidic systems to protect sensitive components from damage due to contamination and particles. For the safe operation of micro annular gear pumps and their precision-machined rotors, the use of a 10 µm meshed filter is recommended. With compact filter units made out of corrosion-resistant materials, with high filtration performance and different mesh sizes, HNP Mikrosysteme offers suitable filter solutions for all of its pump series. The filter series F-MI2 is available in three different configurations. The »inlet filter«, without an external housing, is directly immersed in the liquid. The »inline filters« are designed to be installed downstream in the feed line, i.e. directly before the pump. The maintenance-friendly »T-design« offers the advantage of changing the filter element without having to uninstall the filter from the feed line, and the option to open the bottom for releasing medium or emptying the filter. To avoid sedimentation and cross-contamination the filters have small dead volumes and are manufactured with smooth surfaces (Ra 0.8). Advantages — Corrosion-resistant materials stainless steel or alloy C22, FFPM — Metal filter elements without solder or adhesives — High filtration performance and small size pleated filter elements for low pressure drops even at high flow rates and viscosities — Wide configuration variety different body shapes and body materials, filter fineness and sealing materials — User-friendly and economical filter elements can be cleaned or replaced
Технические характеристики
CharacteristicsDesigned forliquidApplicationsfor pumps, for chemical applications, laboratory, for medical applications, for the pharmaceutical industryMaterialmetal, stainless steelCleaningwashableFluid specificationfor high-viscosity liquidsOther characteristicspleated, compact, in-line, high-performance, high-capacity, low pressure, corrosion-proof, small, custom, immersedOperating pressure
Max.: 200 bar (2,900.755 psi)
Min.: 0 bar (0 psi)
