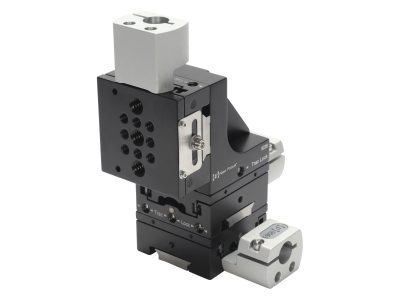

Линейный столик XYZ, тройной делитель, ход 0,55 дюйма, 8-32 и 1/4-20 Модель: 9065-XYZ

Технические характеристики

• Axes of Travel X, Y, Z
• Maximum Stage Travel 14 mm
• Centered Normal Load Capacity 53 N
• Straight Line Accuracy
• Material Aluminum
• Bearings Single-Row Ball Bearings

• Thread Type 8-32 and 1/4-20
• Recommended Adjustment Screw 9301
• Recommended Vernier Micrometer SM-13
• Recommended Lockable Micrometer DM-13L
• Recommended Piezo Actuator 8301NF
