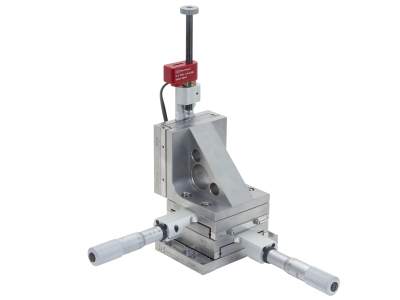

The 9067-XYZ-NNP Stainless Steel Crossed-Roller Bearing XYZ Stage offers 1.0 in. travel. Weve incorporated our Picomotor actuators with our crossed-roller-bearing translation stages to meet your demanding photonics applications. All necessary clamps, brackets, and base plates are included so that the stage can be used right out of the box. Some assembly is required. Crossed-roller bearings provide smooth and accurate positioning for critical optical alignment applications such as fiber-alignment and high-stability positioning in laser systems. To ensure accurate linear travel, the stages use thermally matched hardened-steel, crossed-roller bearings and high-precision reference surfaces. 8-32 and 1/4-20 threaded mounting holes.
Технические характеристики
- Travel Range 25.4 mm
- Axes of Travel XYZ
- Motorized Axes Z
- Micrometer Axes X, Y
- Included Actuators Picomotor: 8303
Micrometer: 9353 - Maximum Speed 0.02 mm/s
- Minimum Incremental Motion
- Resolution 0.5 µm (Micrometer)
- Centered Load Capacity 222 N
- Vertical Load Capacity 22 N
- Bearings Crossed Roller Bearings
- Material Stainless Steel
- Feedback Open Loop
- Cable Length 2.1 m
- Connector Type 4-Pin
- Thread Type 8-32 and 1/4-20
- Platform Size 63.5 x 63.5 mm
- Operating Temperature 10 to 40°C
