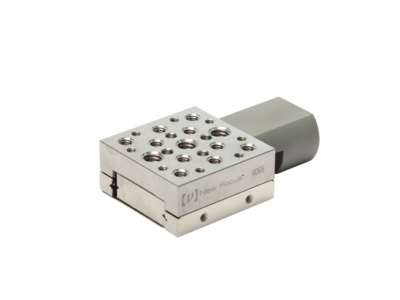

The 9066-COM-V Commercial Vacuum Compatible Stainless Steel Crossed Roller Bearing Linear Translation Stage is a 0.5 inch travel linear translation stage designed to fit directly into your system. These stages are clean assembled and utilize low vapor pressure grease appropriate for vacuum and clean environments. This stage has a reduced profile by eliminating the mounting plates. 9066 series stages feature a generous pattern of eight 4-40. ten 8-32 and three 1/4-20 threaded mounting holes. Actuators are not included. We recommend the 8301-V vacuum compatible picomotor actuators for vacuum applications.
Технические характеристики
- Stage Type Low Profile
- Axes of Travel X
- Maximum Stage Travel 12.7 mm
- Centered Normal Load Capacity 111 N
- Vertical Axial Load Capacity 44.5 N
- Angular Deviation 150 rad
- Material Stainless Steel
- Bearings Crossed-Roller Bearings
- Thread Type 4-40, 8-32 and 1/4-20
- Vacuum Compatibility 10-6 hPa
- Recommended Piezo Actuator 8301-V
