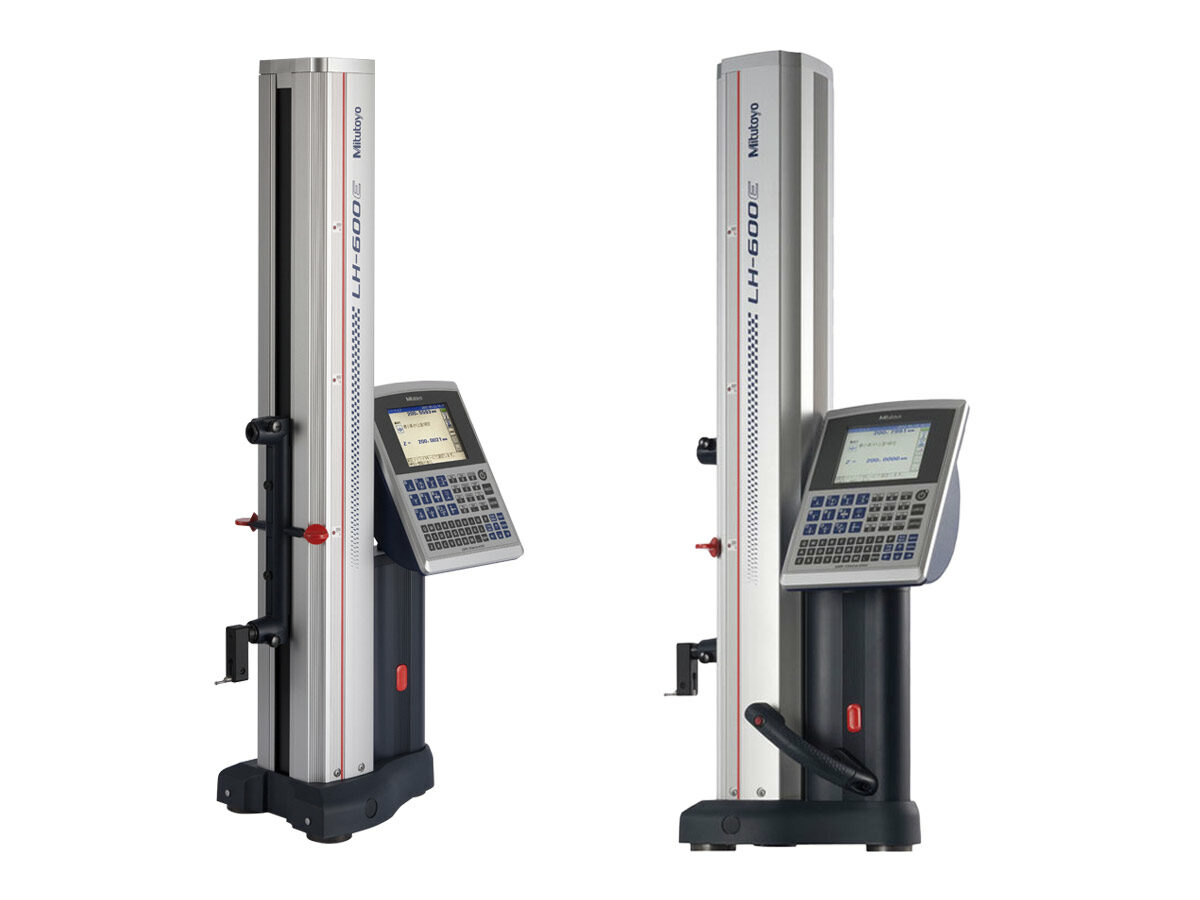

The Mitutoyo LH-600E/EG Linear Height Measurement System achieves best-in-class accuracy by using a high-accuracy scale unit and high-accuracy guiding mechanism manufactured in our scale plant in Japan. The LH-600E features a self-explanatory control pad with menu control on an LCD display which provides repeatable, precise height measurements. An RS-232/USB data output port offers the option to evaluate measurement data with SPC software on a PC. The Linear Height moves without friction over a surface plate using an air bearing incorporated in the base, powered by a small built-in compressor.
- Available in Inch/Metric models
- Excellent accuracy of (1.1+0.6L/600)μm with 0.1μm/0.5μm resolution/repeatability
- Gage is provided with various types of probes and interchangeable styli flexibly compatible with complicated workpiece profiles and various measurement features
- Floating method is full/semi-floating with built-in air compressor
- Icon-type, one-key operation for running semi-automatic measurements
- Allows data entry from a Digimatic tool, such as a digital indicator when testing perpendicularity
- RS-232/USB data port offers the option of data output
- Perpendicularity (frontal) of 5μm and straightness of 4μm are guaranteed
- Runs pre-learned part programs automatically
- Operates on an AC adapter and rechargeable Ni-MH battery
- Model 518-352A-21 comes with power grip
| Order No.: | Product Image: | Units: | Technology: | Display: | Battery Life: | SPC Output: | Range: | Slider stroke: | Resolution: | Selectable resolution: | Accuracy: | Repeatability — Plane: | Repeatability — Bore: | Mass: | Perpendicularity: | Straightness: | Drive Method: | Measuring Force: | Balancing Method: | Main Unit Floating Method: | Air Source: | Language: | Max number of programs: | Max data storage: | Power Supply: | Power Consumption (VA): | Required Accessories: | Optional Accessories: | |
|---|
| 518-351A-21 |  | Metric, Inch | Digimatic | 5.7″ TFT LCD (color) | Approx. 5 hours (compressor duty cycle 25% max) | RS232 Output | 0-977mm / 0-38″ | 600mm / 24″ | 0.001, 0.0001, 0.01, 0.1mm / .0001, .000001, .00001, .001″ | Yes | ±1.1 + 0.6L/600µm / 43+Lµin | 0.4µm / 0.000015″ | 0.9µm / 0.000035″ | 24kg | 5µm / 0.0002″ | 4µm / 0.0002″ | Motor Drive | 1N | Counter balance | Full/semi-floatng with air | Built-in air compressor | English, German, French, Spanish, Italian, Japanese | 50 | 60000 | AC Adapter, Battery (NiMH) | 43 | | — |
| 518-352A-21 | — | Metric, Inch | Digimatic | 5.7″ TFT LCD (color) | Approx. 5 hours (compressor duty cycle 25% max) | RS232 Output | 0-977mm / 0-38″ | 600mm / 24″ | 0.001, 0.0001, 0.01, 0.1mm / .0001, .000001, .00001, .001″ | Yes | ±1.1 + 0.6L/600µm / 43+Lµin | 0.4µm / 0.000015″ | 0.9µm / 0.000035″ | 24.5kg | 5µm / 0.0002″ | 4µm / 0.0002″ | Motor Drive | 1N | Counter balance | Full/semi-floatng with air | Built-in air compressor | English, German, French, Spanish, Italian, Japanese | 50 | 60000 | AC Adapter, Battery (NiMH) | 43 | | — |
