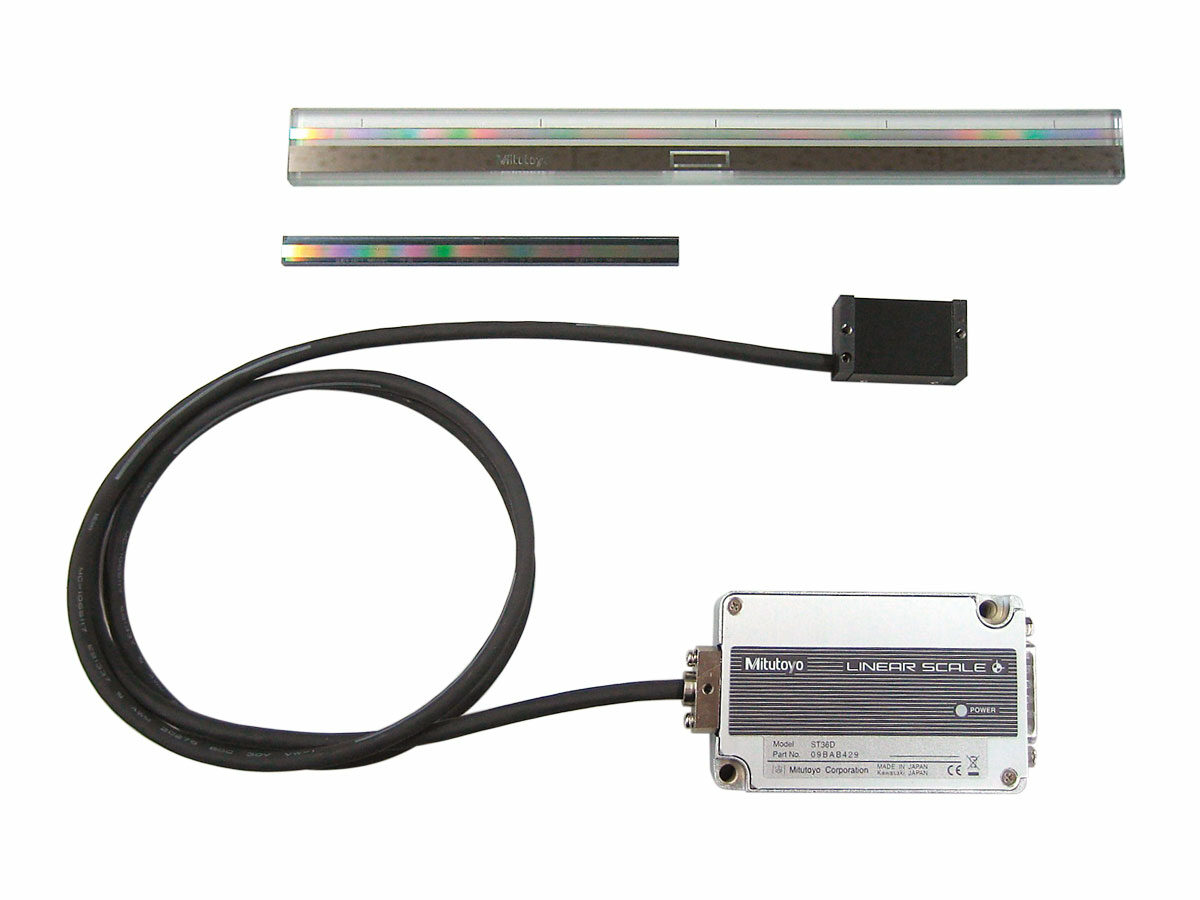

Линейная шкала ST36

The ST36 linear scale has a maximum effective measurement range of 3000mm making it ideal for use on larger machines. An LED alarm detects overspeed and sinusoidal signal anomalies to protect your machine and workpiece.

Outputs two-phase sinusoidal wave signal, two-phase pulse signal and 1Vp-p at 4μm pitch for versatility
High-accuracy type, 0.5μm class (effective range up to 300mm)
Offers a thinner detector head (thickness 11.5mm)
Along with the output specifications of 2-phase sinusoidal wave and 2-phase square wave, the output specification of 1Vp-p wave is available

Order No.:	Product Image:	Model:	Max Range:	Accuracy:	Output Signal:	Scale Reference Point:	Effective Range L1:	Overall Length L2:	Scale Fixing Pitch L3:	Retaining spring A:	Retaining spring B:

Order No.:

<tr data-row=

Технические характеристики

579-501-01	—	ST36A-10	10mm	+/-0.5µm	2-phase sinusoidal signals	Center Point	10mm	30mm	—	—	—
579-501-02	—	ST36B-10	10mm	+/-0.5µm	2-phase square wave signals, alarm reset input	Center Point	10mm	30mm	—	—	—
579-501-03	—	ST36C-10	10mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	Center Point	10mm	30mm	—	—	—
579-501-04	—	ST36D-10	10mm	+/-0.5µm	1Vp-p differential sinusoidal signals	Center Point	10mm	30mm	—	—	—
579-502-01	—	ST36A-25	25mm	+/-0.5µm	2-phase sinusoidal signals	Center Point	25mm	45mm	—	—	—
579-502-02	—	ST36B-25	25mm	+/-0.5µm	2-phase square wave signals, alarm reset input	Center Point	25mm	45mm	—	—	—
579-502-03	—	ST36C-25	25mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	Center Point	25mm	45mm	—	—	—
579-502-04	—	ST36D-25	25mm	+/-0.5µm	1Vp-p differential sinusoidal signals	Center Point	25mm	45mm	—	—	—
579-503-01	—	ST36A-50	50mm	+/-0.5µm	2-phase sinusoidal signals	Center Point	50mm	70mm	—	—	—
579-503-02	—	ST36B-50	50mm	+/-0.5µm	2-phase square wave signals, alarm reset input	Center Point	50mm	70mm	—	—	—
579-503-03	—	ST36C-50	50mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	Center Point	50mm	70mm	—	—	—
579-503-04	—	ST36D-50	50mm	+/-0.5µm	1Vp-p differential sinusoidal signals	Center Point	50mm	70mm	—	—	—
579-504-01	—	ST36A-75	75mm	+/-0.5µm	2-phase sinusoidal signals	Center Point	75mm	90mm	—	—	—
579-504-02	—	ST36B-75	75mm	+/-0.5µm	2-phase square wave signals, alarm reset input	Center Point	75mm	90mm	—	—	—
579-504-03	—	ST36C-75	75mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	Center Point	75mm	90mm	—	—	—
579-504-04	—	ST36D-75	75mm	+/-0.5µm	1Vp-p differential sinusoidal signals	Center Point	75mm	90mm	—	—	—
579-505-01	—	ST36A-80	80mm	+/-0.5µm	2-phase sinusoidal signals	Center Point	80mm	100mm	—	—	—
579-505-02	—	ST36B-80	80mm	+/-0.5µm	2-phase square wave signals, alarm reset input	Center Point	80mm	100mm	—	—	—
579-505-03	—	ST36C-80	80mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	Center Point	80mm	100mm	—	—	—
579-505-04	—	ST36D-80	80mm	+/-0.5µm	1Vp-p differential sinusoidal signals	Center Point	80mm	100mm	—	—	—
579-506-01	—	ST36A-100	100mm	+/-0.5µm	2-phase sinusoidal signals	50mm pitch	100mm	140mm	50mm	1 pcs.	2 .pcs
579-506-02	—	ST36B-100	100mm	+/-0.5µm	2-phase square wave signals, alarm reset input	50mm pitch	100mm	140mm	50mm	1 pcs.	2 .pcs
579-506-03	—	ST36C-100	100mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	100mm	140mm	50mm	1 pcs.	2 .pcs
579-506-04	—	ST36D-100	100mm	+/-0.5µm	1Vp-p differential sinusoidal signals	50mm pitch	100mm	140mm	50mm	1 pcs.	2 .pcs
579-507-01	—	ST36A-150	150mm	+/-0.5µm	2-phase sinusoidal signals	50mm pitch	150mm	190mm	75mm	1 pcs.	2 .pcs
579-507-02	—	ST36B-150	150mm	+/-0.5µm	2-phase square wave signals, alarm reset input	50mm pitch	150mm	190mm	75mm	1 pcs.	2 .pcs
579-507-03	—	ST36C-150	150mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	150mm	190mm	75mm	1 pcs.	2 .pcs
579-507-04	—	ST36D-150	150mm	+/-0.5µm	1Vp-p differential sinusoidal signals	50mm pitch	150mm	190mm	75mm	1 pcs.	2 .pcs
579-508-01	—	ST36A-200	200mm	+/-0.5µm	2-phase sinusoidal signals	50mm pitch	200mm	240mm	100mm	1 pcs.	2 .pcs
579-508-02	—	ST36B-200	200mm	+/-0.5µm	2-phase square wave signals, alarm reset input	50mm pitch	200mm	240mm	100mm	1 pcs.	2 .pcs
579-508-03	—	ST36C-200	200mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	200mm	240mm	100mm	1 pcs.	2 .pcs
579-508-04	—	ST36D-200	200mm	+/-0.5µm	1Vp-p differential sinusoidal signals	50mm pitch	200mm	240mm	100mm	1 pcs.	2 .pcs
579-509-01	—	ST36A-250	250mm	+/-0.5µm	2-phase sinusoidal signals	50mm pitch	250mm	290mm	60mm	1 pcs.	4 .pcs
579-509-02	—	ST36B-250	250mm	+/-0.5µm	2-phase square wave signals, alarm reset input	50mm pitch	250mm	290mm	60mm	1 pcs.	4 .pcs
579-509-03	—	ST36C-250	250mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	250mm	290mm	60mm	1 pcs.	4 .pcs
579-509-04	—	ST36D-250	250mm	+/-0.5µm	1Vp-p differential sinusoidal signals	50mm pitch	250mm	290mm	60mm	1 pcs.	4 .pcs
579-510-01	—	ST36A-300	300mm	+/-0.5µm	2-phase sinusoidal signals	50mm pitch	300mm	340mm	75mm	1 pcs.	4 .pcs
579-510-02	—	ST36B-300	300mm	+/-0.5µm	2-phase square wave signals, alarm reset input	50mm pitch	300mm	340mm	75mm	1 pcs.	4 .pcs
579-510-03	—	ST36C-300	300mm	+/-0.5µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	300mm	340mm	75mm	1 pcs.	4 .pcs
579-510-04	—	ST36D-300	300mm	+/-0.5µm	1Vp-p differential sinusoidal signals	50mm pitch	300mm	340mm	75mm	1 pcs.	4 .pcs
579-511-01	—	ST36A-350	350mm	+/-1µm	2-phase sinusoidal signals	50mm pitch	350mm	390mm	85mm	1 pcs.	4 .pcs
579-511-02	—	ST36B-350	350mm	+/-1µm	2-phase square wave signals, alarm reset input	50mm pitch	350mm	390mm	85mm	1 pcs.	4 .pcs
579-511-03	—	ST36C-350	350mm	+/-1µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	350mm	390mm	85mm	1 pcs.	4 .pcs
579-511-04	—	ST36D-350	350mm	+/-1µm	1Vp-p differential sinusoidal signals	50mm pitch	350mm	390mm	85mm	1 pcs.	4 .pcs
579-512-01	—	ST36A-400	400mm	+/-1µm	2-phase sinusoidal signals	50mm pitch	400mm	440mm	100mm	1 pcs.	4 .pcs
579-512-02	—	ST36B-400	400mm	+/-1µm	2-phase square wave signals, alarm reset input	50mm pitch	400mm	440mm	100mm	1 pcs.	4 .pcs
579-512-03	—	ST36C-400	400mm	+/-1µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	400mm	440mm	100mm	1 pcs.	4 .pcs
579-512-04	—	ST36D-400	400mm	+/-1µm	1Vp-p differential sinusoidal signals	50mm pitch	400mm	440mm	100mm	1 pcs.	4 .pcs
579-513-01	—	ST36A-450	450mm	+/-1µm	2-phase sinusoidal signals	50mm pitch	450mm	490mm	75mm	1 pcs.	6 .pcs
579-513-02	—	ST36B-450	450mm	+/-1µm	2-phase square wave signals, alarm reset input	50mm pitch	450mm	490mm	75mm	1 pcs.	6 .pcs
579-513-03	—	ST36C-450	450mm	+/-1µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	450mm	490mm	75mm	1 pcs.	6 .pcs
579-513-04	—	ST36D-450	450mm	+/-1µm	1Vp-p differential sinusoidal signals	50mm pitch	450mm	490mm	75mm	1 pcs.	6 .pcs
579-514-01	—	ST36A-500	500mm	+/-1µm	2-phase sinusoidal signals	50mm pitch	500mm	540mm	80mm	1 pcs.	6 .pcs
579-514-02	—	ST36B-500	500mm	+/-1µm	2-phase square wave signals, alarm reset input	50mm pitch	500mm	540mm	80mm	1 pcs.	6 .pcs
579-514-03	—	ST36C-500	500mm	+/-1µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	500mm	540mm	80mm	1 pcs.	6 .pcs
579-514-04	—	ST36D-500	500mm	+/-1µm	1Vp-p differential sinusoidal signals	50mm pitch	500mm	540mm	80mm	1 pcs.	6 .pcs
579-515-01	—	ST36A-600	600mm	+/-2µm	2-phase sinusoidal signals	50mm pitch	600mm	640mm	100mm	1 pcs.	6 .pcs
579-515-02	—	ST36B-600	600mm	+/-2µm	2-phase square wave signals, alarm reset input	50mm pitch	600mm	640mm	100mm	1 pcs.	6 .pcs
579-515-03	—	ST36C-600	600mm	+/-2µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	600mm	640mm	100mm	1 pcs.	6 .pcs
579-515-04	—	ST36D-600	600mm	+/-2µm	1Vp-p differential sinusoidal signals	50mm pitch	600mm	640mm	100mm	1 pcs.	6 .pcs
579-516-01	—	ST36A-700	700mm	+/-2µm	2-phase sinusoidal signals	50mm pitch	700mm	740mm	85mm	1 pcs.	8 .pcs
579-516-02	—	ST36B-700	700mm	+/-2µm	2-phase square wave signals, alarm reset input	50mm pitch	700mm	740mm	85mm	1 pcs.	8 .pcs
579-516-03	—	ST36C-700	700mm	+/-2µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	700mm	740mm	85mm	1 pcs.	8 .pcs
579-516-04	—	ST36D-700	700mm	+/-2µm	1Vp-p differential sinusoidal signals	50mm pitch	700mm	740mm	85mm	1 pcs.	8 .pcs
579-517-01	—	ST36A-800	800mm	+/-2µm	2-phase sinusoidal signals	50mm pitch	800mm	840mm	100mm	1 pcs.	8 .pcs
579-517-02	—	ST36B-800	800mm	+/-2µm	2-phase square wave signals, alarm reset input	50mm pitch	800mm	840mm	100mm	1 pcs.	8 .pcs
579-517-03	—	ST36C-800	800mm	+/-2µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	800mm	840mm	100mm	1 pcs.	8 .pcs
579-517-04	—	ST36D-800	800mm	+/-2µm	1Vp-p differential sinusoidal signals	50mm pitch	800mm	840mm	100mm	1 pcs.	8 .pcs
579-518-01	—	ST36A-900	900mm	+/-2µm	2-phase sinusoidal signals	50mm pitch	900mm	940mm	90mm	1 pcs.	10 .pcs
579-518-02	—	ST36B-900	900mm	+/-2µm	2-phase square wave signals, alarm reset input	50mm pitch	900mm	940mm	90mm	1 pcs.	10 .pcs
579-518-03	—	ST36C-900	900mm	+/-2µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	900mm	940mm	90mm	1 pcs.	10 .pcs
579-518-04	—	ST36D-900	900mm	+/-2µm	1Vp-p differential sinusoidal signals	50mm pitch	900mm	940mm	90mm	1 pcs.	10 .pcs
579-519-01	—	ST36A-1000	1000mm	+/-2µm	2-phase sinusoidal signals	50mm pitch	1000mm	1040mm	100mm	1 pcs.	10 .pcs
579-519-02	—	ST36B-1000	1000mm	+/-2µm	2-phase square wave signals, alarm reset input	50mm pitch	1000mm	1040mm	100mm	1 pcs.	10 .pcs
579-519-03	—	ST36C-1000	1000mm	+/-2µm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	1000mm	1040mm	100mm	1 pcs.	10 .pcs
579-519-04	—	ST36D-1000	1000mm	+/-2µm	1Vp-p differential sinusoidal signals	50mm pitch	1000mm	1040mm	100mm	1 pcs.	10 .pcs
579-520-01	—	ST36A-1100	1100mm	+/-2/mµm	2-phase sinusoidal signals	50mm pitch	1100mm	1140mm	90mm	1 pcs.	12 .pcs
579-520-02	—	ST36B-1100	1100mm	+/-2/mµm	2-phase square wave signals, alarm reset input	50mm pitch	1100mm	1140mm	90mm	1 pcs.	12 .pcs
579-520-03	—	ST36C-1100	1100mm	+/-2/mµm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	1100mm	1140mm	90mm	1 pcs.	12 .pcs
579-520-04	—	ST36D-1100	1100mm	+/-2/mµm	1Vp-p differential sinusoidal signals	50mm pitch	1100mm	1140mm	90mm	1 pcs.	12 .pcs
579-521-01	—	ST36A-1200	1200mm	+/-2/mµm	2-phase sinusoidal signals	50mm pitch	1200mm	1240mm	100mm	1 pcs.	12 .pcs
579-521-02	—	ST36B-1200	1200mm	+/-2/mµm	2-phase square wave signals, alarm reset input	50mm pitch	1200mm	1240mm	100mm	1 pcs.	12 .pcs
579-521-03	—	ST36C-1200	1200mm	+/-2/mµm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	1200mm	1240mm	100mm	1 pcs.	12 .pcs
579-521-04	—	ST36D-1200	1200mm	+/-2/mµm	1Vp-p differential sinusoidal signals	50mm pitch	1200mm	1240mm	100mm	1 pcs.	12 .pcs
579-522-01	—	ST36A-1300	1300mm	+/-2/mµm	2-phase sinusoidal signals	50mm pitch	1300mm	1340mm	130mm	1 pcs.	10 .pcs
579-522-02	—	ST36B-1300	1300mm	+/-2/mµm	2-phase square wave signals, alarm reset input	50mm pitch	1300mm	1340mm	130mm	1 pcs.	10 .pcs
579-522-03	—	ST36C-1300	1300mm	+/-2/mµm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	1300mm	1340mm	130mm	1 pcs.	10 .pcs
579-522-04	—	ST36D-1300	1300mm	+/-2/mµm	1Vp-p differential sinusoidal signals	50mm pitch	1300mm	1340mm	130mm	1 pcs.	10 .pcs
579-523-01	—	ST36A-1400	1400mm	+/-2/mµm	2-phase sinusoidal signals	50mm pitch	1400mm	1440mm	100mm	1 pcs.	14 .pcs
579-523-02	—	ST36B-1400	1400mm	+/-2/mµm	2-phase square wave signals, alarm reset input	50mm pitch	1400mm	1440mm	100mm	1 pcs.	14 .pcs
579-523-03	—	ST36C-1400	1400mm	+/-2/mµm	2-phase square wave signals, 2-phase sinusoidal signals	50mm pitch	1400mm	1440mm	100mm	1 pcs.	14 .pcs
579-523-04	—	ST36D-1400	1400mm	+/-2/mµm	1Vp-p differential sinusoidal signals	50mm pitch	1400mm	1440mm	100mm	1 pcs.	14 .pcs

Type:	High Accuracy Type
Detection Method:	Reflective photoelectric linear encoder
Resolution:	0.2/ 0.5/ 1/ 5 (Selectable with internal switch)µm
Main scale grating pitch:	8µm
Signal Output Pitch:	4µm
Max Response Speed:	1200mm/s
Operating Temperature Range:	0 to 45˚C
Operating temperature/humidity range:	0 to 40˚C, RH20 to 80 (no condensation)
Storage Temperature Range:	-20 to 60˚C
Storage temperature/humidity range:	-20 to 60˚C, RH20 to 80 (no condensation)
Head Cable Length:	1 (high-flex connecting cable)m
