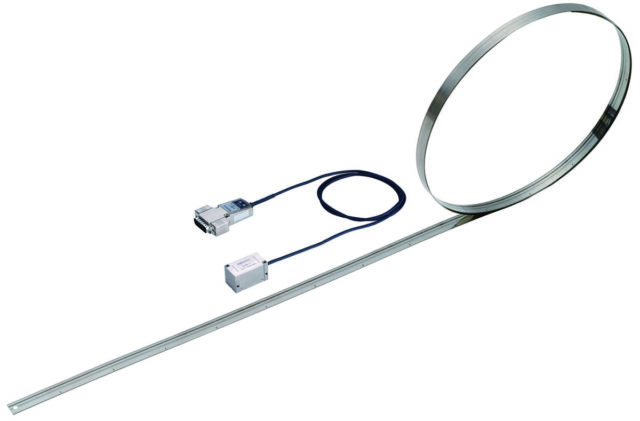

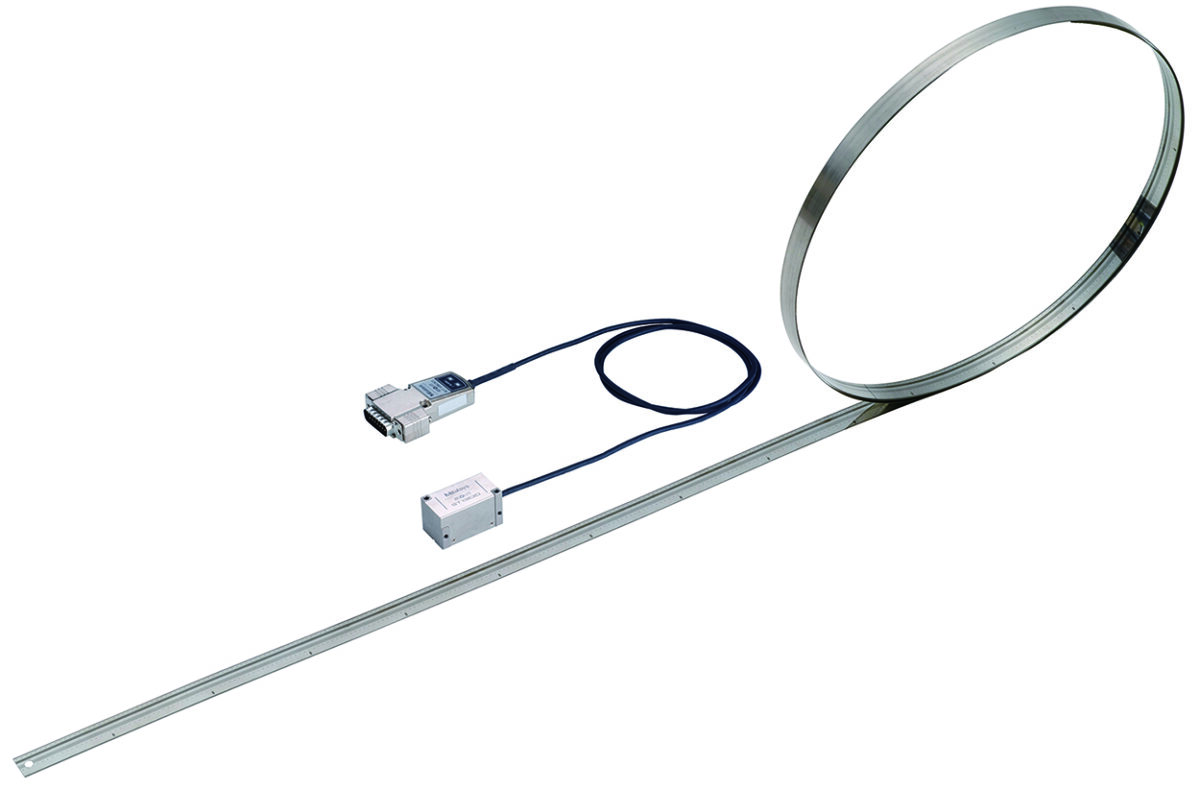

The high-speed, high-resolution capabilities offer the ability to withstand contamination which makes the ST1300 linear scale ideal for semiconductor positioning. The scale»s 12m maximum effective length with 8-m/s max response speed provides accurate positioning on large-stage applications as well.
- Outstanding robustness against contamination compared to earlier photoelectric types by using a new detection principle
- Choose between double-sided tape and tension mounting methods
- Signal validation PC program facilitates mounting adjustment and maintenance
- Absolute scales have eliminated the need for origin restoration and drastically reduced power consumption
- Extensive interface compatibility including FANUC, Mitsubishi Electric, Yaskawa Electric, Panasonic, Mitutoyo ENSIS standard interface
| Order No.: | Remarks: | Model: | Max Range: | Accuracy: | Max Response Speed: | Min Resolution: | Scale Specifications: | Applicable Interfaces: | |
|---|
| ST1300 | Multiple configurations available, contact sales rep for more information. | ABS ST1300 | 12 m | 10 µm/m (± 5µm) | 8 m/s (Varies according to the interface) | 1 nm / 10 nm | Metal tape | FANUC, Mitsubishi Electric, Yaskawa Electric, Panasonic, Mitutoyo ENSIS standard Interface |
