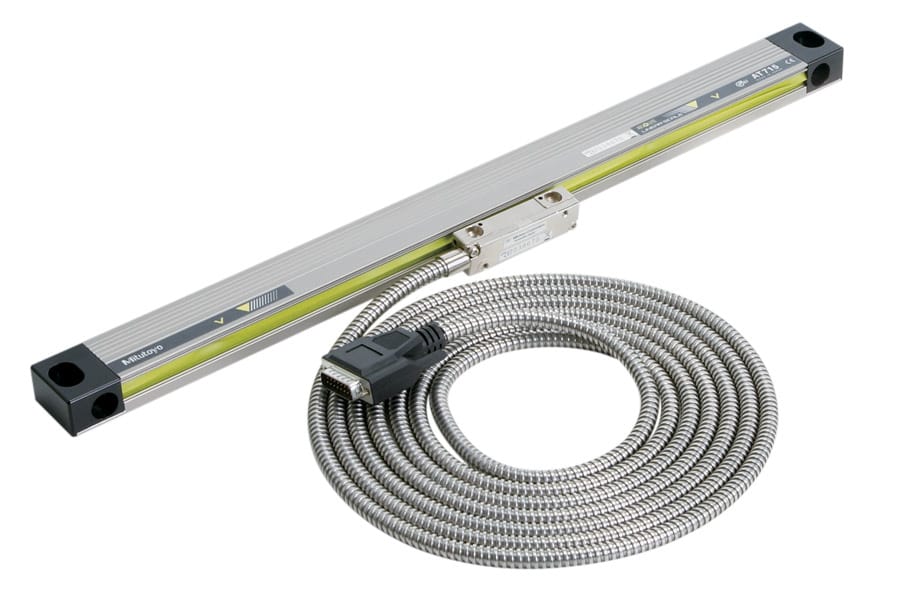

Линейная шкала AT715 ABS

Абсолютные линейные весы AT715 отличаются высокой точностью и надежностью, что делает их идеальными для работы в суровых условиях.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

Utilizing an electromagnetic induction system, the ABS AT715 linear scale is highly resistant to oils, water and dust making it ideal for shop floor use. The main scale unit provides two mounting directions for easy installation on a machine tool which has difficult mounting arrangements.

Abnormal calculations do not accumulate even if the calculation mistake is generated by electrical noise
Absolute scales have eliminated the need for origin restoration and drastically reduces power consumption
Suitable for milling machines, XY tables, jigs, etc.
IP67 protection level offers high resistance to water, dust and other contaminants

Order No.:	Product Image:	Model:	Max Range:	Accuracy:	Maximum Response Speed:	Protection Level:	Sliding force:	Signal Cable Length:

Order No.:

539-801R	—	ABS AT715-100	100mm / 4″	+/-5µm	50m/min	IP67	5 or less N	3.4m
539-802R	—	ABS AT715-150	150mm / 6″	+/-5µm	51m/min	IP68	6 or less N	3.4m
539-803R	—	ABS AT715-200	200mm / 8″	+/-5µm	52m/min	IP69	7 or less N	3.4m
539-804R	—	ABS AT715-250	250mm / 10″	+/-5µm	53m/min	IP70	8 or less N	3.4m
539-805R	—	ABS AT715-300	300mm / 12″	+/-5µm	54m/min	IP71	9 or less N	3.4m
539-806R	—	ABS AT715-350	350mm / 14″	+/-5µm	55m/min	IP72	10 or less N	3.4m
539-807R	—	ABS AT715-400	400mm / 16″	+/-5µm	56m/min	IP73	11 or less N	3.4m
539-808R	—	ABS AT715-450	450mm / 18″	+/-5µm	57m/min	IP74	12 or less N	3.4m
539-809R	—	ABS AT715-500	500mm / 20″	+/-5µm	58m/min	IP75	13 or less N	3.4m
539-811R	—	ABS AT715-600	600mm / 24″	+/-7µm	59m/min	IP76	14 or less N	3.4m
539-813R	—	ABS AT715-700	700mm / 28″	+/-7µm	60m/min	IP77	15 or less N	3.4m
539-815R	—	ABS AT715-800	800mm / 32″	+/-7µm	62m/min	IP79	17 or less N	3.4m
539-816R	—	ABS AT715-900	900mm / 36″	+/-7µm	63m/min	IP80	18 or less N	3.4m
539-817R	—	ABS AT715-1000	1000mm / 40″	+/-7µm	64m/min	IP81	19 or less N	4.9m
539-818R	—	ABS AT715-1100	1100mm / 44″	+/-7µm	65m/min	IP82	20 or less N	4.9m
539-819R	—	ABS AT715-1200	1200mm / 48″	+/-7µm	66m/min	IP83	21 or less N	4.9m
539-820R	—	ABS AT715-1300	1300mm / 52″	+/-7µm	67m/min	IP84	22 or less N	4.9m
539-821R	—	ABS AT715-1400	1400mm / 56″	+/-7µm	68m/min	IP85	23 or less N	4.9m
539-822R	—	ABS AT715-1500	1500mm / 60″	+/-7µm	69m/min	IP86	24 or less N	4.9m
539-823R	—	ABS AT715-1600	1600mm / 64″	+/-7µm	70m/min	IP87	25 or less N	4.9m
539-824R	—	ABS AT715-1700	1700mm / 68″	+/-7µm	71m/min	IP88	26 or less N	4.9m
539-825R	—	ABS AT715-1800	1800mm / 72″	+/-7µm	72m/min	IP89	27 or less N	4.9m
539-860R	—	ABS AT715-2000	2000mm / 80″	+/-10µm	73m/min	IP90	28 or less N	4.9m
539-861R	—	ABS AT715-2200	2200mm / 88″	+/-10µm	74m/min	IP91	29 or less N	4.9m
539-862R	—	ABS AT715-2400	2400mm / 96″	+/-10µm	75m/min	IP92	30 or less N	6.9m
539-863R	—	ABS AT715-2500	2500mm / 100″	+/-10µm	76m/min	IP93	31 or less N	6.9m
539-864R	—	ABS AT715-2600	2600mm / 104″	+/-10µm	77m/min	IP94	32 or less N	6.9m
539-865R	—	ABS AT715-2800	2800mm / 112″	+/-10µm	78m/min	IP95	33 or less N	6.9m
539-866R	—	ABS AT715-3000	3000mm / 120″	+/-10µm	79m/min	IP96	34 or less N	6.9m

539-801R

539-802R

539-803R

539-804R

539-805R

539-806R

539-807R

539-808R

539-809R

539-811R

539-813R

539-815R

539-816R

539-817R

539-818R

539-819R

539-820R

539-821R

539-822R

539-823R

539-824R

539-825R

539-860R

539-861R

539-862R

539-863R

539-864R

539-865R

539-866R

Технические характеристики

Type:	Slim Spar Type
Detection Method:	Electromagnetic induction
Resolution:	0.0005 to 0.01µm / .000020 to .001′
Connectable counter:	KA Counter/ KLD200 Counter
