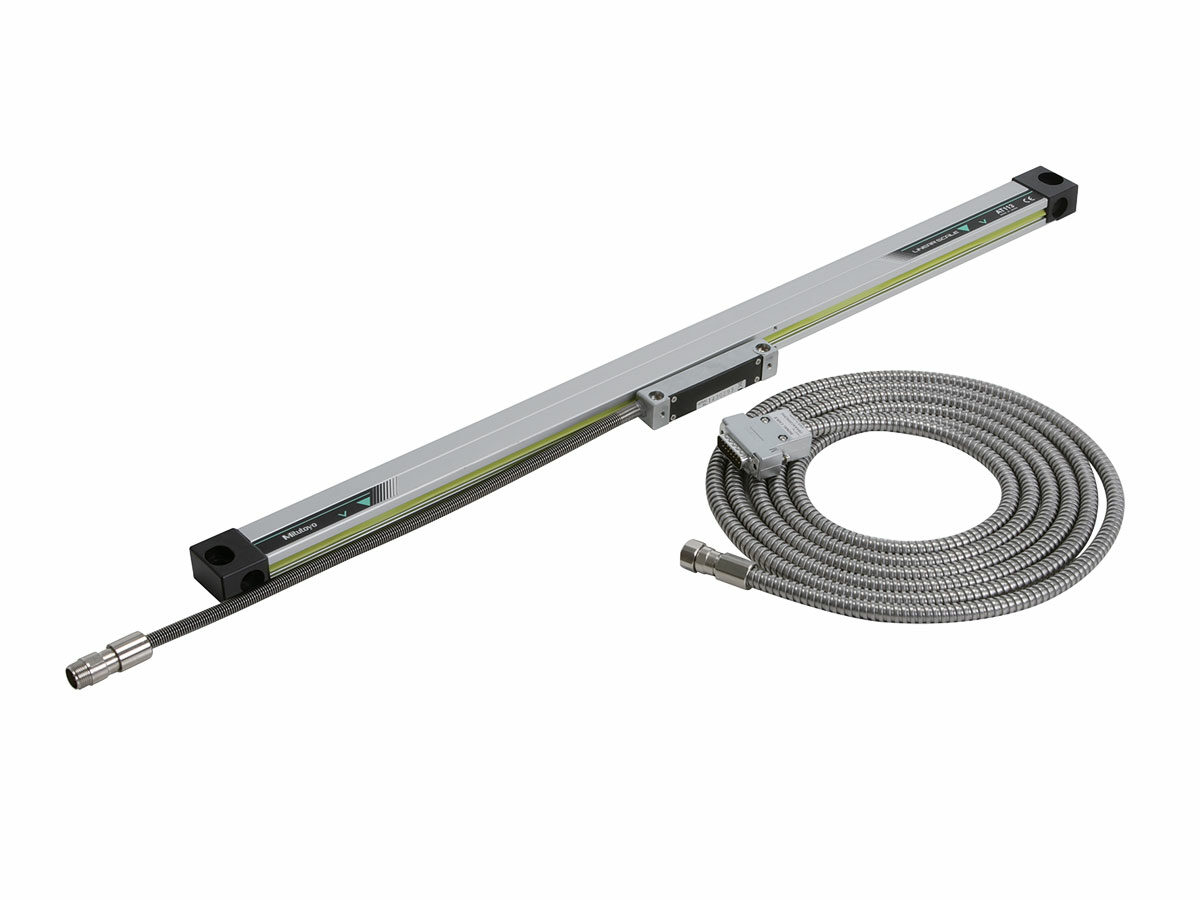

Линейная шкала AT113

The LED light source and phototransistor receptor on the AT113 linear scale provides accurate results in a variety of applications. Its slim design allows for installation in smaller spaces, and the enhanced vibration resistance offers added durability for shop floor use.

Slim spar type with unit sectional dimensions of 22×35mm
Dimensionally compatible with AT116 linear scale units
High precision and ultra-high precision models are available
Innovative rubber lips keep contaminants out to eliminate dust
An armored signal cable is used to connect the scale unit to the DRO counter for safe operation in harsh shop environments
The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
A wide variety of measuring ranges are available in this standard type scale unit
Connectable to the KA counter or PSU-200
IP53 rated for protection from dust and spraying water

Order No.:	Product Image:	Model:	Max Range:	Accuracy:	Signal Cable Length:

Order No.:

539-201-30	—	AT113-100	100mm / 4″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-201-40	—	AT113-100F	100mm / 4″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-202-30	—	AT113-150	150mm / 6″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-202-40	—	AT113-150F	150mm / 6″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-203-30	—	AT113-200	200mm / 8″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-203-40	—	AT113-200F	200mm / 8″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-204-30	—	AT113-250	250mm / 10″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-204-40	—	AT113-250F	250mm / 10″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-205-30	—	AT113-300	300mm / 12″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-205-40	—	AT113-300F	300mm / 12″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-206-30	—	AT113-350	350mm / 14″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-206-40	—	AT113-350F	350mm / 14″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-207-30	—	AT113-400	400mm / 16″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-207-40	—	AT113-400F	400mm / 16″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-208-30	—	AT113-450	450mm / 18″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-208-40	—	AT113-450F	450mm / 18″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-209-30	—	AT113-500	500mm / 20″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-209-40	—	AT113-500F	500mm / 20″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-211-30	—	AT113-600	600mm / 24″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-211-40	—	AT113-600F	600mm / 24″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-213-30	—	AT113-700	700mm / 28″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-213-40	—	AT113-700F	700mm / 28″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-214-30	—	AT113-750	750mm / 30″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-214-40	—	AT113-750F	750mm / 30″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-215-30	—	AT113-800	800mm / 32″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-215-40	—	AT113-800F	800mm / 32″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-216-30	—	AT113-900	900mm / 36″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-216-40	—	AT113-900F	900mm / 36″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	3m
539-217-30	—	AT113-1000	1000mm / 40″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-217-40	—	AT113-1000F	1000mm / 40″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-218-30	—	AT113-1100	1100mm / 44″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-218-40	—	AT113-1100F	1100mm / 44″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-219-30	—	AT113-1200	1200mm / 48″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-219-40	—	AT113-1200F	1200mm / 48″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-220-30	—	AT113-1300	1300mm / 52″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-220-40	—	AT113-1300F	1300mm / 52″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-221-30	—	AT113-1400	1400mm / 56″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-221-40	—	AT113-1400F	1400mm / 56″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-222-30	—	AT113-1500	1500mm / 60″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	5m
539-222-40	—	AT113-1500F	1500mm / 60″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	5m

539-201-30
539-201-40
539-202-30
539-202-40
539-203-30
539-203-40
539-204-30
539-204-40
539-205-30
539-205-40
539-206-30
539-206-40
539-207-30
539-207-40
539-208-30
539-208-40
539-209-30
539-209-40
539-211-30
539-211-40
539-213-30
539-213-40
539-214-30
539-214-40
539-215-30
539-215-40
539-216-30
539-216-40
539-217-30
539-217-40
539-218-30
539-218-40
539-219-30
539-219-40
539-220-30
539-220-40
539-221-30
539-221-40
539-222-30
539-222-40

Технические характеристики

Type:	Slim Spar Type — Standard Accuracy
Resolution:	0.01 to 0.0001mm / .001 to .000005′
Output Signal:	Two 90 degree phase-shifted sinusoidal signals
Maximum Response Speed:	120m/min
Signal Output Pitch:	20µm
Scale Reference Point:	Output in 50mm pitch
Protection Level:	IP53
Operating Temperature Range:	0 to 45˚C
Connectable counter:	KA Counter, KLD200 Counter, PSU-202
