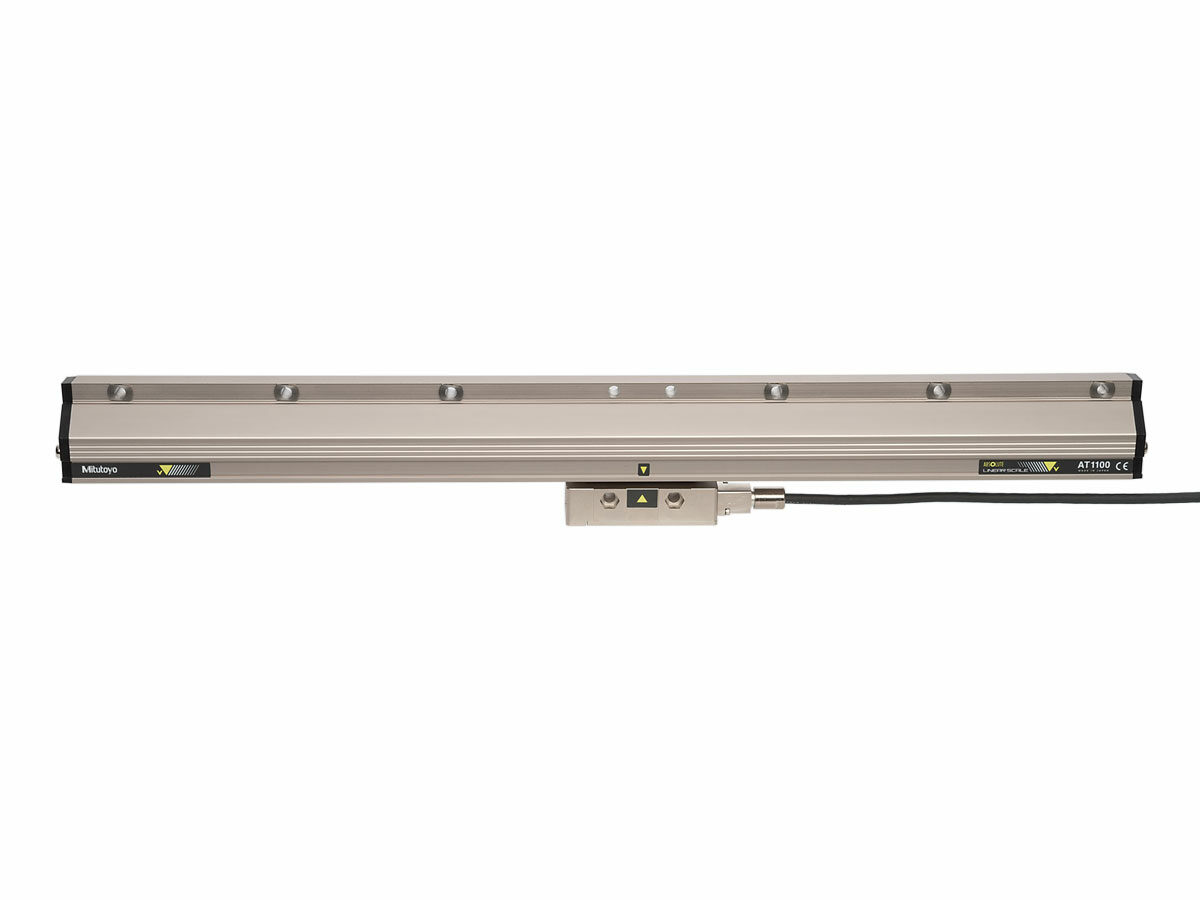

Линейная шкала AT1100 ABS

The AT1100 linear scale features unique electromagnetic induction technology to provide excellent oil, water and other contaminant resistance. The linear scale»s housing shape, detector track location and track-seal material further protect the scale and sensor in harsh environments.

Electromagnetic induction principle means scales are unaffected by most contamination
Multipoint frame mounting method provides high resistance to vibration and shock
Absolute scales have eliminated the need for origin restoration and drastically reduces power consumption
Improvements in signal processing technology creates approximately six times higher accuracy than that of previous scales
Compatible with high-speed serial interface from leading machine-tool companies, allowing direct connection to an NC controller

Order No.:	Product Image:	Model:	Max Range:	Accuracy:	Impact Resistance (at11ms, 1/2sin):	Compatible interfaces:	Mounting Dimensions:

Order No.:

559-100-43	—	AT1143-140	140mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-100-53	—	AT1153-140	140mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-101-43	—	AT1143-240	240mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-101-53	—	AT1153-240	240mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-102-43	—	AT1143-340	340mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-102-53	—	AT1153-340	340mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-103-43	—	AT1143-440	440mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-103-53	—	AT1153-440	440mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-104-43	—	AT1143-540	540mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-104-53	—	AT1153-540	540mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-105-43	—	AT1143-640	640mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-105-53	—	AT1153-640	640mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-106-43	—	AT1143-740	740mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-106-53	—	AT1153-740	740mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-107-43	—	AT1143-840	840mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-107-53	—	AT1153-840	840mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-108-43	—	AT1143-940	940mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-108-53	—	AT1153-940	940mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-109-43	—	AT1143-1040	1040mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-109-53	—	AT1153-1040	1040mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-110-43	—	AT1143-1140	1140mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-110-53	—	AT1153-1140	1140mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-111-43	—	AT1143-1240	1240mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-111-53	—	AT1153-1240	1240mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-112-43	—	AT1143-1340	1340mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-112-53	—	AT1153-1340	1340mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-113-43	—	AT1143-1440	1440mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-113-53	—	AT1153-1440	1440mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-114-43	—	AT1143-1540	1540mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-114-53	—	AT1153-1540	1540mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-115-43	—	AT1143-1640	1640mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-115-53	—	AT1153-1640	1640mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-116-43	—	AT1143-1740	1740mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-116-53	—	AT1153-1740	1740mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-117-43	—	AT1143-1840	1840mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-117-53	—	AT1153-1840	1840mm	(3+5L/1000)µm	35g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-118-43	—	AT1143-2040	2040mm	(3+5L/1000)µm	35g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-119-43	—	AT1143-2240	2240mm	5+5L/1000µm	30g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-119-53	—	AT1153-2240	2240mm	5+5L/1000µm	30g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-120-43	—	AT1143-2440	2440mm	5+5L/1000µm	30g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-120-53	—	AT1153-2440	2440mm	5+5L/1000µm	30g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-121-43	—	AT1143-2640	2640mm	5+5L/1000µm	30g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-121-53	—	AT1153-2640	2640mm	5+5L/1000µm	30g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-122-43	—	AT1143-2840	2840mm	5+5L/1000µm	30g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-122-53	—	AT1153-2840	2840mm	5+5L/1000µm	30g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC
559-123-43	—	AT1143-3040	3040mm	5+5L/1000µm	30g L=140 to 2040mm	Mitsubishi Electric Corporation»s High-speed Serial Interface	Mitsubishi
559-123-53	—	AT1153-3040	3040mm	5+5L/1000µm	30g L=140 to 2040mm	FANUC Corporation»s Serial Interface	FANUC

559-100-43
559-100-53
559-101-43
559-101-53
559-102-43
559-102-53
559-103-43
559-103-53
559-104-43
559-104-53
559-105-43
559-105-53
559-106-43
559-106-53
559-107-43
559-107-53
559-108-43
559-108-53
559-109-43
559-109-53
559-110-43
559-110-53
559-111-43
559-111-53
559-112-43
559-112-53
559-113-43
559-113-53
559-114-43
559-114-53
559-115-43
559-115-53
559-116-43
559-116-53
559-117-43
559-117-53
559-118-43
559-119-43
559-119-53
559-120-43
559-120-53
559-121-43
559-121-53
559-122-43
559-122-53
559-123-43
559-123-53

Технические характеристики

Type:	General Mount Type, robust dustproof/watrproof structure
Detection Method:	Electromagnetic induction
Resolution:	0.05µm
Max Response Speed:	3
Cross-section size:	85x37mm
Thermal Expansion Coefficient:	Approx. 8+/-1.5×10^-6/K
Vibration resistance (at 55 to 2000Hz):	20g
