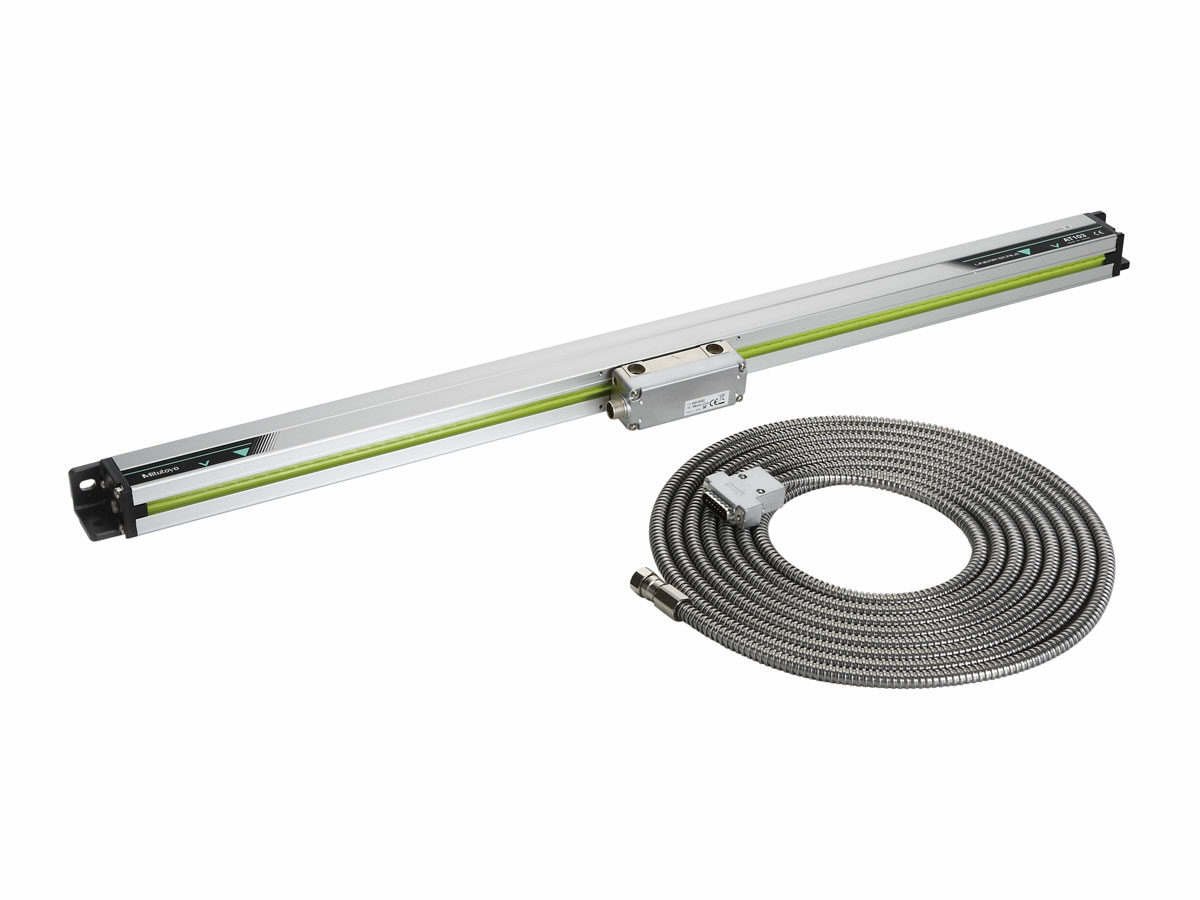

Линейная шкала AT103

Enhanced vibration resistance makes the AT103 linear scale more durable while innovative rubber lips keep dust and contaminants out of the unit. An armored signal cable is used to connect the scale unit to a DRO counter for safe, accurate operations in harsh shop environments.

The signal cable outlet can be positioned on either side of the detector head, allowing the signal cable to be connected from either direction
A wide variety of measuring ranges are available in this standard type scale unit
Connectable to the KA counter or PSU-200
IP53 rated for protection from dust and spraying water

Order No.:	Product Image:	Model:	Max Range:	Accuracy:	Maximum Response Speed:	Signal Cable Length:

Order No.:

539-111-30	—	Ƒ√	100mm / 4″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-111-40	—	AT103-100F	100mm / 4″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-112-30	—	AT103-150	150mm / 6″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-112-40	—	AT103-150F	150mm / 6″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-113-30	—	AT103-200	200mm / 8″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-113-40	—	AT103-200F	200mm / 8″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-114-30	—	AT103-250	250mm / 10″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-114-40	—	AT103-250F	250mm / 10″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-115-30	—	AT103-300	300mm / 12″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-115-40	—	AT103-300F	300mm / 12″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-116-30	—	AT103-350	350mm / 14″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-116-40	—	AT103-350F	350mm / 14″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-117-30	—	AT103-400	400mm / 16″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-117-40	—	AT103-400F	400mm / 16″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-118-30	—	AT103-450	450mm / 18″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-118-40	—	AT103-450F	450mm / 18″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-119-30	—	AT103-500	500mm / 20″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-119-40	—	AT103-500F	500mm / 20″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-121-30	—	AT103-600	600mm / 24″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-121-40	—	AT103-600F	600mm / 24″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-123-30	—	AT103-700	700mm / 28″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-123-40	—	AT103-700F	700mm / 28″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-124-30	—	AT103-750	750mm / 30″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-124-40	—	AT103-750F	750mm / 30″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-125-30	—	AT103-800	800mm / 32″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-125-40	—	AT103-800F	800mm / 32″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-126-30	—	AT103-900	900mm / 36″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-126-40	—	AT103-900F	900mm / 36″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	3m
539-127-30	—	AT103-1000	1000mm / 40″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-127-40	—	AT103-1000F	1000mm / 40″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-128-30	—	AT103-1100	1100mm / 44″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-128-40	—	AT103-1100F	1100mm / 44″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-129-30	—	AT103-1200	1200mm / 48″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-129-40	—	AT103-1200F	1200mm / 48″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-130-30	—	AT103-1300	1300mm / 52″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-130-40	—	AT103-1300F	1300mm / 52″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-131-30	—	AT103-1400	1400mm / 56″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-131-40	—	AT103-1400F	1400mm / 56″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-132-30	—	AT103-1500	1500mm / 60″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-132-40	—	AT103-1500F	1500mm / 60″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-133-30	—	AT103-1600	1600mm / 64″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-133-40	—	AT103-1600F	1600mm / 64″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-134-30	—	AT103-1700	1700mm / 68″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-134-40	—	AT103-1700F	1700mm / 68″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-135-30	—	AT103-1800	1800mm / 72″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-135-40	—	AT103-1800F	1800mm / 72″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-136-30	—	AT103-2000	2000mm / 80″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-136-40	—	AT103-2000F	2000mm / 80″	3+3L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-137-30	—	AT103-2200	2200mm / 88″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	5m
539-138-30	—	AT103-2400	2400mm / 96″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	7m
539-139-30	—	AT103-2500	2500mm / 100″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	7m
539-140-30	—	AT103-2600	2600mm / 104″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	7m
539-141-30	—	AT103-2800	2800mm / 112″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	7m
539-142-30	—	AT103-3000	3000mm / 120″	5+5L/1000 («L» is the effective range of the selected scale in mm)µm	120m/min	7m
539-143-30	—	AT103-3250	3250mm / 130″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	10m
539-144-30	—	AT103-3500	3500mm / 140″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	10m
539-145-30	—	AT103-3750	3750mm / 150″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	10m
539-146-30	—	AT103-4000	4000mm / 160″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	10m
539-147-30	—	AT103-4250	4250mm / 170″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	10m
539-148-30	—	AT103-4500	4500mm / 180″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	10m
539-149-30	—	AT103-4750	4750mm / 190″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	15m
539-150-30	—	AT103-5000	5000mm / 200″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	15m
539-151-30	—	AT103-5250	5250mm / 210″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	15m
539-152-30	—	AT103-5500	5500mm / 220″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	15m
539-153-30	—	AT103-5750	5750mm / 230″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	15m
539-154-30	—	AT103-6000	6000mm / 240″	5+8L/1000 («L» is the effective range of the selected scale in mm)µm	50m/min	15m

539-111-30
539-111-40
539-112-30
539-112-40
539-113-30
539-113-40
539-114-30
539-114-40
539-115-30
539-115-40
539-116-30
539-116-40
539-117-30
539-117-40
539-118-30
539-118-40
539-119-30
539-119-40
539-121-30
539-121-40
539-123-30
539-123-40
539-124-30
539-124-40
539-125-30
539-125-40
539-126-30
539-126-40
539-127-30
539-127-40
539-128-30
539-128-40
539-129-30
539-129-40
539-130-30
539-130-40
539-131-30
539-131-40
539-132-30
539-132-40
539-133-30
539-133-40
539-134-30
539-134-40
539-135-30
539-135-40
539-136-30
539-136-40
539-137-30
539-138-30
539-139-30
539-140-30
539-141-30
539-142-30
539-143-30
539-144-30
539-145-30
539-146-30
539-147-30
539-148-30
539-149-30
539-150-30
539-151-30
539-152-30
539-153-30
539-154-30

Технические характеристики

Type:	Standard Type — Standard Accuracy
Resolution:	0.01 to 0.0001mm / .001 to .000005′
Output Signal:	Two 90 degree phase-shifted sinusoidal signals
Signal Output Pitch:	20µm
Scale Reference Point:	Output in 50mm pitch
Protection Level:	IP53
Operating Temperature Range:	0 to 45˚C
Connectable counter:	KA Counter, KLD200 Counter, PSU-200
Optional Accessories:	09AAA033A, 09AAA033B, 09AAA033C, 174-183A, 174-185A
