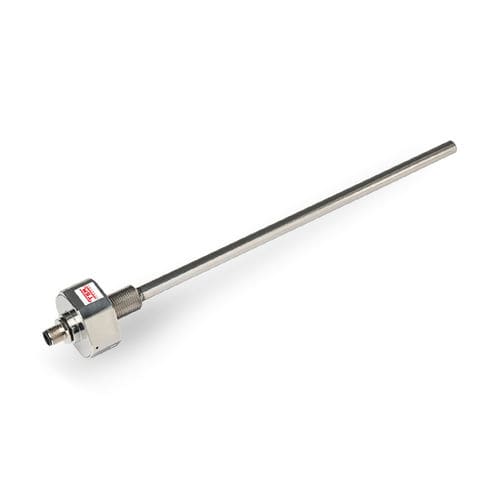

Absolute measuring length up to 3 m linear position transducer MAG200 is a magnetostrictive position transducer with threaded connection, designed for mobile machines which can be installed inside oil-pressure cylinders. The only external part is the head whose slim profile facilitates installation in confined spaces and allows easy maintenance operations. Its unique design, plus a wide range of cursor configurations, ensure easy installation and full compatibility with cylinder manufacturer specifications. The temperature range from -40 to +85°C, the operating pressures up to 350 bar and the high resistance to vibration and shock make the sensor very robust, a fundamental feature in heavy-duty applications. High performance in terms of transduction of measurement defined as linearity, hysteresis and repeatability.
Технические характеристики
CharacteristicsTypelinearContact / non-contactnon-contactTechnologymagnetostrictiveOutput signalCANopenProtection classIP67Applicationsheavy-dutyOther characteristicsabsoluteMeasuring range
3 m (910)
