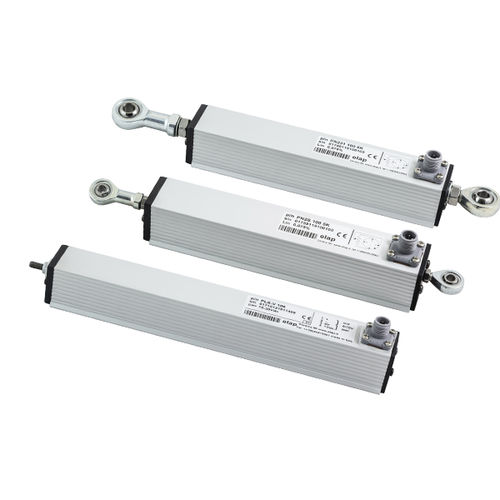

The transducers series PNS-V, PN2S-V and PN231-V provide the 0÷10Vdc analogue output signal proportional to the position reached by the rod. The active electronics makes it easy to interface the transducers to external devices such as PLC, controllers, visualisers etc., besides granting a high quality signal. The transducers series PNS-V, PN2S-V and PN231-V are supplied with 18÷30 Vdc voltage, the measuring strokes range from 50 to 950 mm. The conductive plastic resistive element ensures the product long life, excellent independent linearity and a virtually infinite resolution. Connections are granted by M12 connector. Thanks to the stout aluminium case which provides high protection against environmental agents, potentiometers series V can stand applications in severe conditions, even outdoor. Several fittings – ball joints, self-aligning joints, feeler pin – and different mechanical versions – PN2S-V, PN231-V – complete the series. AVAILABLE STROKES mm 50 – 100 – 150 – 200 – 250 – 300 – 400 – 500 – 750* – 950* *750 mm for series PNS-V, PN231-V – 950 mm series PNS-V
Технические характеристики
CharacteristicsTypelinearTechnologyconductive plastic potentiometerOutput signalanalog outputProtection classIP65Applicationsindustrial, for harsh environments, for robotics, OEM applications, for machine toolsOther characteristicsrugged, precision, corrosion-resistant, vibration-resistantMeasuring range
Max.: 950 mm (37.4 in)
Min.: 50 mm (1.97 in)
Linearity
Max.: 0.1 %
Min.: 0.1 %
Supply voltage
Max.: 30 V
Min.: 18 V
