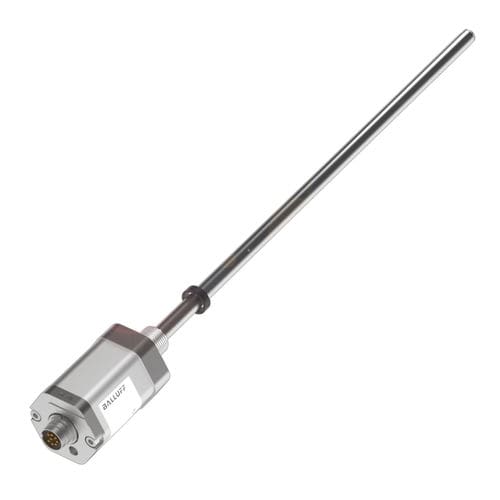

Style Rod series Fastening detail Threaded flange M18x1.5 Housing material Aluminium, Anodized Magnets, number max. 1 Connection Connector, M16x0.75, 8-pin Analog output Analog, current 4…20 mA Non-linearity max. ±0.01 % FS Repeat accuracy ± 5 µm Operating voltage Ub IP rating per IEC 60529 IP67 Approval/Conformity CE UKCA cULus WEEE
Технические характеристики
CharacteristicsTypelinearTechnologymagnetostrictiveOutput signalanalogProtection classIP67ApplicationsindustrialOther characteristicscompactMeasuring range
650 mm (25.59 in)
Linearity
0 %
Measuring rate
1,000 Hz
Supply voltage
Max.: 28 V
Min.: 20 V
Ambient temperature
Max.: 85 °C (185 °F)
Min.: -40 °C (-40 °F)
