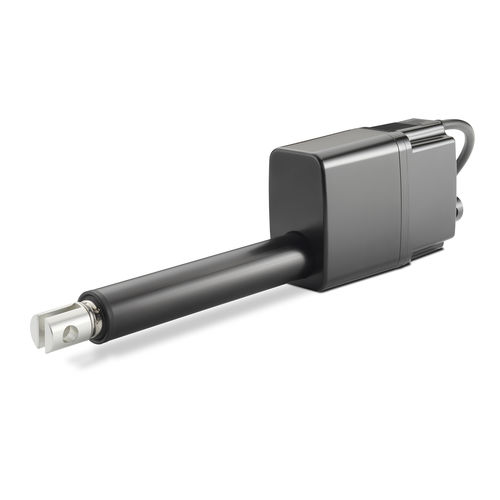

Designed as a smaller sibling to the Electrak HD actuator, these smart electric linear actuators pack a big punch relative to their compact size and dutifully perform in the harshest environments without the need for service or maintenance. Onboard controls open the door to a wide range of possibilities, including CAN bus options and low-level switching with or without position feedback. Electrak MD Feature Highlights: • — Onboard electronics • — Built-in J1939 CAN bus • — Overload protection • — Electronic trip point calibration • — End-of-stroke, voltage, current monitoring • — Standard anti-rotation actuation • — CE, RoHS, REACH (CU) compliant • — Dynamic motor braking • — Self-locking lead nut • — Temperature monitoring • — Temperature compensation • — Flying lead cables Electrak MD Electronics Options: • — EXX: Monitoring System (EMS) only • — EXP: EXX+Analog Position Output • — LXX: EXX+Low Level Signal Switching • — LLX: EXX+LXX+End of Stroke Output • — LXP: EXX+LXX+Analog Position Output • — CNO: Can Bus J1939 Control + Open Loop Speed Control • — XXX = Internal End-of-Stroke Limit Switches • — XXP = XXX + Analog (Potentiometer) Position Output • — LLP = LLX + Analog (Potentiometer) Position Output Electrak MD Applications: • — Automated Guided Vehicles • — Logistics Trains • Workstations • — Packaging Machines • — Agricultural Vehicles • — Agricultural Vehicles • — Gardening and Landscaping Vehicles • — Seeding, Watering and Fertilizing Machines
Технические характеристики
CharacteristicsMovementlinearTypeelectricMotorDCVoltage24 V, 12 VProtection classIP69K, IP66, IP67, for harsh environmentsApplicationsfor vehiclesOther characteristicscompact, miniature, wide, self-locking, CAN Bus, end-of-strokeStroke
Max.: 300 mm (11.811 in)
Min.: 50 mm (1.969 in)
Force
250 N, 500 N, 1,000 N, 2,000 N
Speed
7 mm/s, 14.5 mm/s, 28 mm/s, 52 mm/s
Ambient temperature
Max.: 85 °C (185 °F)
Min.: -40 °C (-40 °F)
