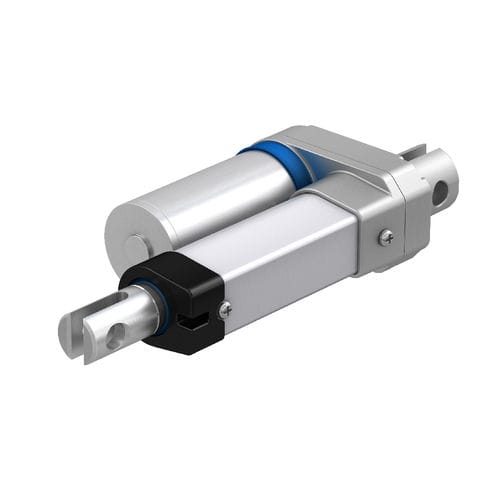

Benefits: • Designed and tested for demanding conditions • Reliable and cost-effective • Reduced overall set time • Practically maintenance-free • Compact and robust design, IP66S, wide temperature range and corrosion resistant • Absolute or incremental positioning feedback and optional integrated limit switches • Integrated thermal protection • Other design options are available The CAHB-10 is a compact solution for low load applications powered by DC voltage and is virtually maintenance-free, self-locking, IP66S rated. Designed to operate at temperatures from -40 to 85 °C and up to 25% duty cycle, Ewellix’s CAHB-10 electromechanical actuator family features robust metal gears and corrosion-resistant housings. Other design options are available.
Технические характеристики
CharacteristicsMovementlinearTypeelectricConfigurationdouble-actingMotorDCVoltage24-volt, 12-voltProtection classIP69K, IP66, maintenance-free, robustOther characteristicscompact, with parallel motor, self-locking, corrosion-resistantStroke
Min.: 50 mm (1.969 in)
Max.: 300 mm (11.811 in)
Force
Min.: 120 N
Max.: 1,500 N
Speed
Min.: 5 mm/s
Max.: 56 mm/s
Ambient temperature
Min.: -40 °C (-40 °F)
Max.: 85 °C (185 °F)
