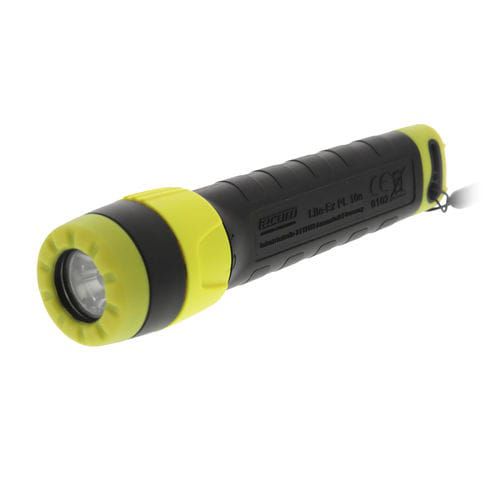

Flashlight Ex-zone 0/20 Ring switch High performance LED 64 lumen Rugged housing Diaphragm valve for pressure compensation Extremely lightweight Product Explosion-protected LED flashlight (ATEX / IECEx zone 0/20) General specifications Bulb — High performance LED Luminous intensity — 3000 Lux (1 m distance) Luminous flux — 64 lumen Electrical specifications Battery type — 3x LR03 / AAA (type-tested) Operating duration — approx. 55 h (continuous operation) Approvals and certificates CE conformity — CE 0102 Ambient conditions Ambient temperature — -20 … 50 °C (-4 … 122 °F) Storage temperature — -30 … 60 °C (-22 … 140 °F) (without batteries) Mechanical specifications Degree of protection — IP 65 IP 67 following EN/IEC 60529 (industrial standard) Mass — approx. 120 g (with batteries) Dimensions — 147 mm x 36 mm Data for application in connection with hazardous areas EU-type examination certificate — EPS 16 ATEX 1 170 X Marking — Ex-Hexagon II 1G Ex ia IIC T4 Ga IP65 Ex-Hexagon II 1D Ex ia IIIC T130°C Da IP65 International approvals IECEx approval — IECEx certificate — IECEx EPS 16.0074X IECEx marking — Ex ia IIC T4 Ga IP65 Ex ia IIIC T130°C Da IP65 General information Scope of delivery — Lite-Ex® PL 10e Batteries Hand strap Documentation
Технические характеристики
CharacteristicsTypeLEDApplicationsATEX, industrial
