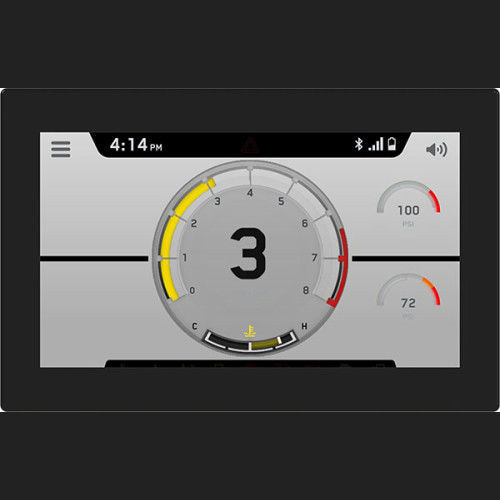

Like its smaller brother, the OpenView S50, the larger OpenView S70 is a full-color configurable display that integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface. The OpenView S70 is easily viewed in full sunlight and contains an optically bonded LCD inside its IP65-rated case to keep it safe in most weather environments. The OpenView S70 comes standard with a glass-front, glove-friendly touchscreen suited to a wide array of applications. The OpenView S70 introduces the all-new Select Series, retaining the ruggedness, customizability, and excellent performance Enovation Controls’ displays are known for, but with an unprecedented value proposition posed to expand full-color rugged displays to new markets. Computing Processor: A7 dual-core processor @ 650 MHz (32-bit) Software: Linux Storage: 4 GB flash memory RAM: 512 MB DDR3-SDRAM Display Contrast Ratio: Typ. 800:1 Brightness: 720 cd/m² (720 nits) Communication CAN: (1) CAN Serial: (1) RS-485 WiFi: 802.1 b/g Bluetooth: BT v4.2 Electrical Operating Voltage: 6 – 36 VDC, reverse polarity protected Inputs: (2) Resistive 0–5 VDC (2) Digital/Analog 0–36 VDC Outputs: (2) 500 mA switched low-side Environmental Operating Temperature: -20°C to +70°C Storage Temperature: -30°C to +70°C Protection: IP65 Vibration: IEC 60068-2-64 Shock: IEC 60068-2-27 EMC/EMI: ISO 14982:2009, ISO 13766:2018
Технические характеристики
CharacteristicsTypeLCD, color, capacitive touch screenFormat1024 x 600Screen size7ApplicationsinformationOther characteristicsRS485, LED-backlit, USB Type-C, WiFi, IP65, rugged
