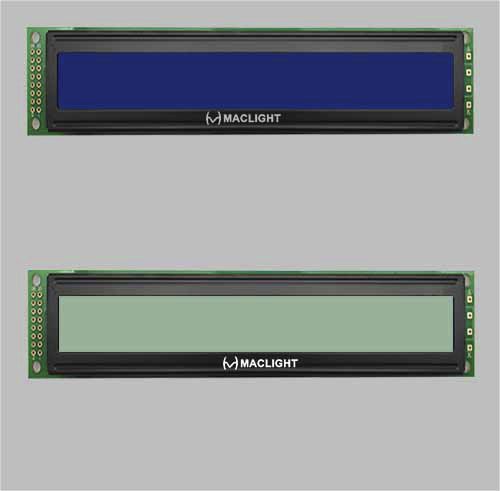

40×2 lcd 40 characters x 2 lines COB LCD Yellow-green/Blue display mode Product : 40×2 lcd display, STN display mode, COB structure, FSTN, yellow-green, blue mode available, high contrast, 6 o’clock viewing angel. 0x2 lcd character display: Features: This is 40×2 character lcd display, that with 2 lines of 40 characters, with LCD driver chips on the PCB board, it is widely used for many industrial display, high contrast, wide temperature, MPU interface. ROHS. LCD mode: stn lcd display, yellow-green mode. ( black-white mode, blue mode optional) Characters: 2 lines x 40 characters Controller IC: SPLC780D or Equivalent COB structure (Chip on board) Viewing angle: 6 o’clock direction Interface: 6800 serial 8-bit/4 bit MPU interface Backlight: Yellow LED or white colors LED Operating Temperature range: -20 to +70 degree Storage Temperature range: -30 to +80 degree
Технические характеристики
CharacteristicsTypeLCD, dot-matrix, monochromeApplicationsindustrial, controlOther characteristicsindoor, outdoor, cost-effective, blue modeLength
182 mm (7.165 in)
Width
33.5 mm (1.3189 in)
Height
14.5 mm (0.5709 in)
