Description
- Optical System: Infinity corrected
- Head: 30° inclined, gemel binocular head, interpupillary distance 47 to 75 mm
- Objectives: Infinity plan achromatic objective (4X, 10X, 40X, 100X)
- Eyepieces: High eye point wide field plan eyepiece PL 10X/20 mm, with adjustable diopter
- Focus: Coarse and Fine — low position coaxial focusing mechanism
- Coarse range: 25 mm, fine
- Precision: 0.002 mm, with tension adjustment and upper limit
- Condenser: N.A.1.25 LIGHT™ condenser with plug-in phase contrast and dark field accessories interface, condenser preset center
- Illumination: 3 W LED Stage: 150 x 162 mm double-layer composite mechanical moving stage, double slice clamps, moving range: 76 x 50 mm, accuracy: 0.1 mm
- Nosepiece: Reversed quadruple
Технические характеристики
| Camera Type | None |
| Eyepiece | 10X/20 mm FOV |
| Lighting Type | LED |

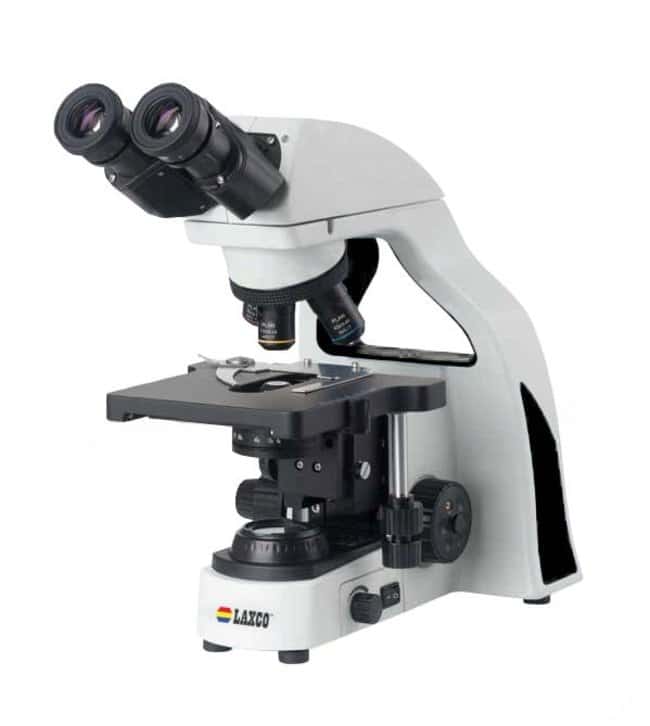

| Model | LMC2P-BF1 |
| Product Line | Laxco™ |
| Resolution | Infinity corrected |
| Nosepiece | Reversed Quadruple |
